Deploying & Configuring the VMware LCM Bundle Utility on Photon OS: A Step-by-Step Guide

by Tommy Grot June 3, 2025

written by Tommy Grot 4 minutes read

The need for streamlined VMware appliance updates is undeniable. Managing a VMware Cloud Foundation environment and its appliances can quickly become a complex and time-consuming task, especially in an offline, disconnected VCF environment. This post provides a detailed, step-by-step guide to deploying and configuring the VMware Lifecycle Manager (LCM) Bundle Utility on Photon OS, offering a significant improvement in update management efficiency. We’ll cover everything from initial setup to verifying successful configuration, providing clear instructions and practical advice for administrators comfortable with Photon OS command-line interfaces. Let’s get started!

If you’re interested in creating an offline depot for VCF, check out Aaron Rombaut; he wrote an excellent blog post tailored for VCF offline depots.

What is Required:

Photon OS ISO (Only Supported on Photon**)
Virtual Machine with 2+ vCPUs & 4GB+ Memory & 1TB Storage
PuTTY
WinSCP

** The LCM Bundle Utility is currently not supported on other Linux distributions or Windows, particularly due to the new Broadcom Token Implementation

You will need to obtain the full ISO x86_64 image.

Download	Size	sha512 checksum
Full ISO x86_64	4.4G	6a7a258399a258da742032987c043ab25503698d35edafaf1ae000f12127da1a161d8b84caa17fd8f23d129e81e1faa7ab087c20ab9229772a643f8f9475305f

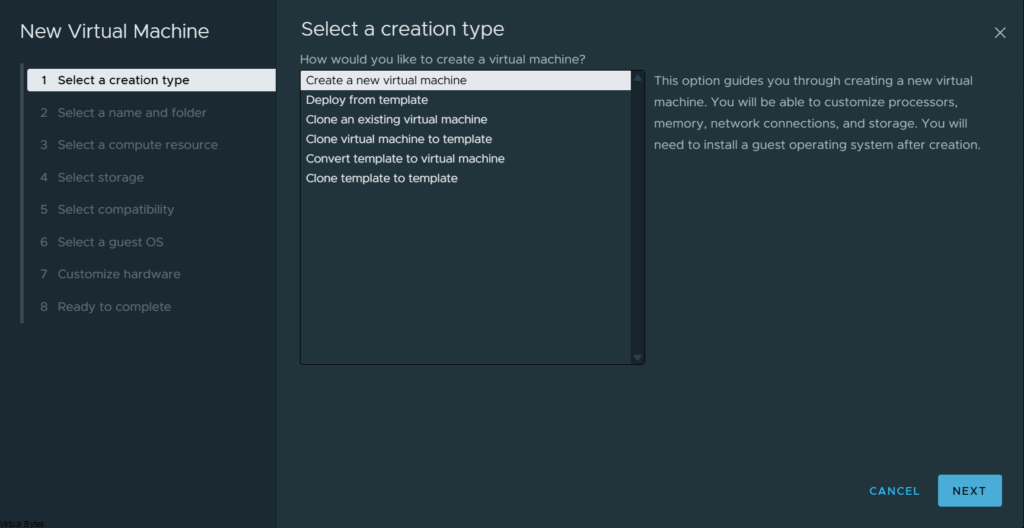

Create New Virtual Machine ->

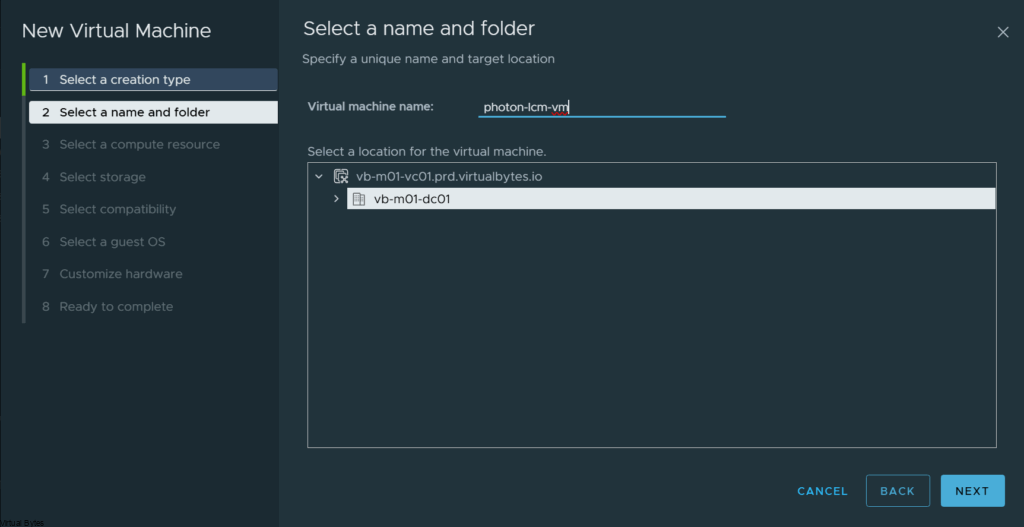

Virtual Machine name ->

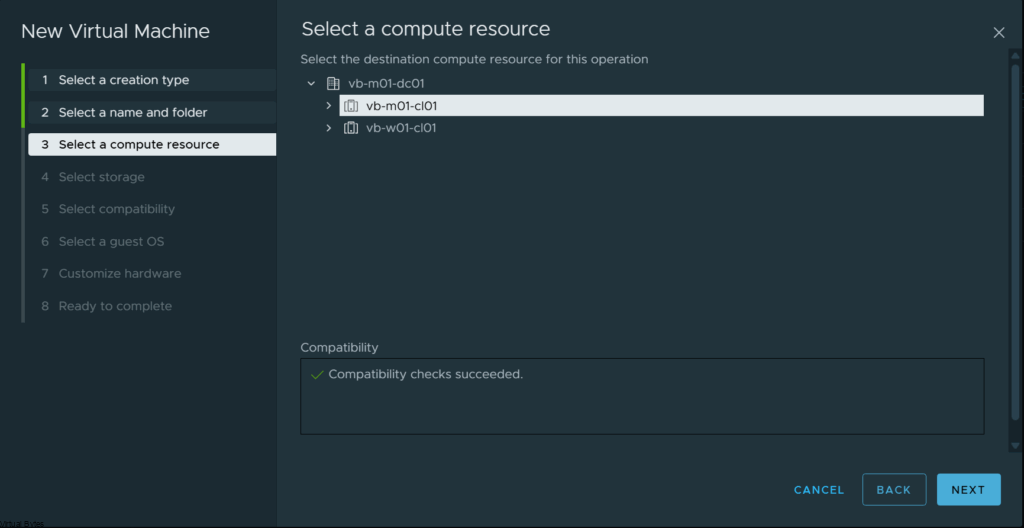

Select the compute resource ->

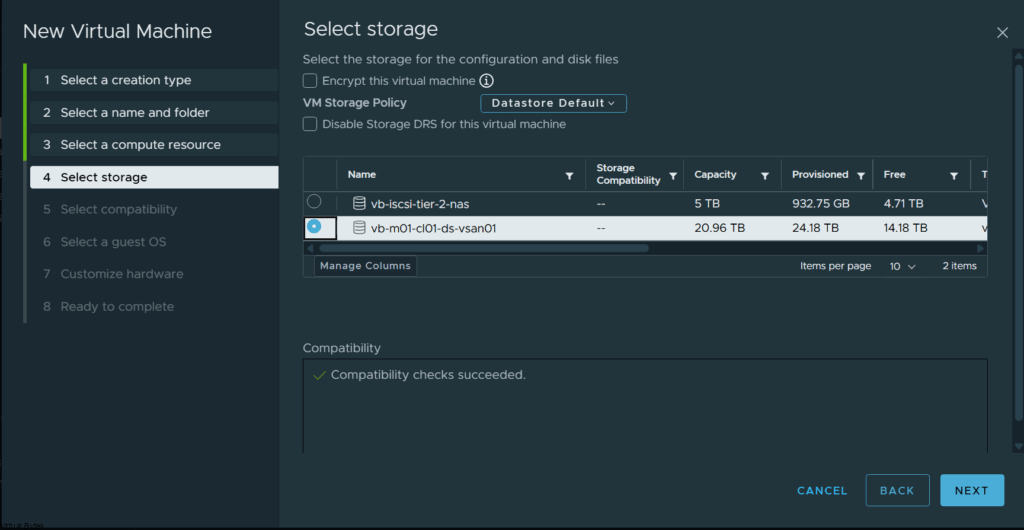

Select your Storage ->

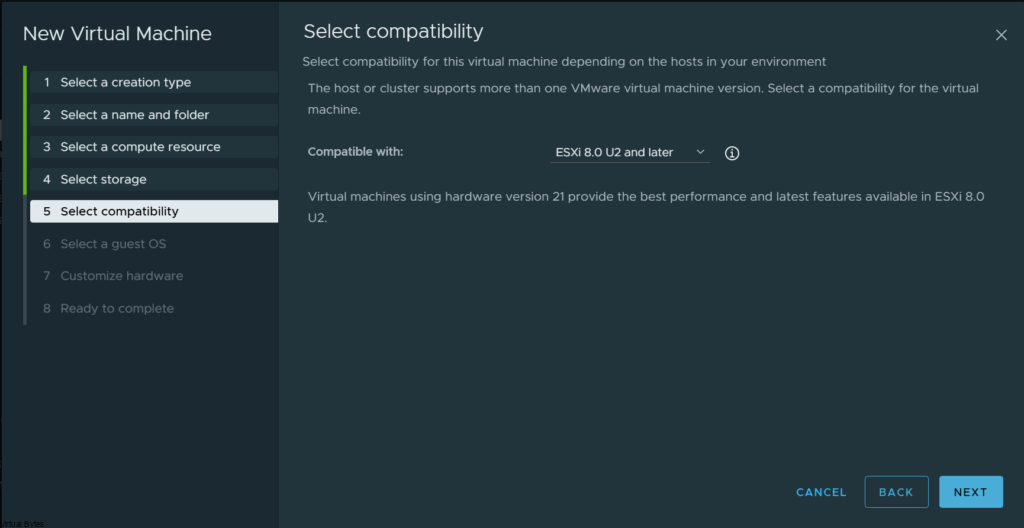

Select Default ->

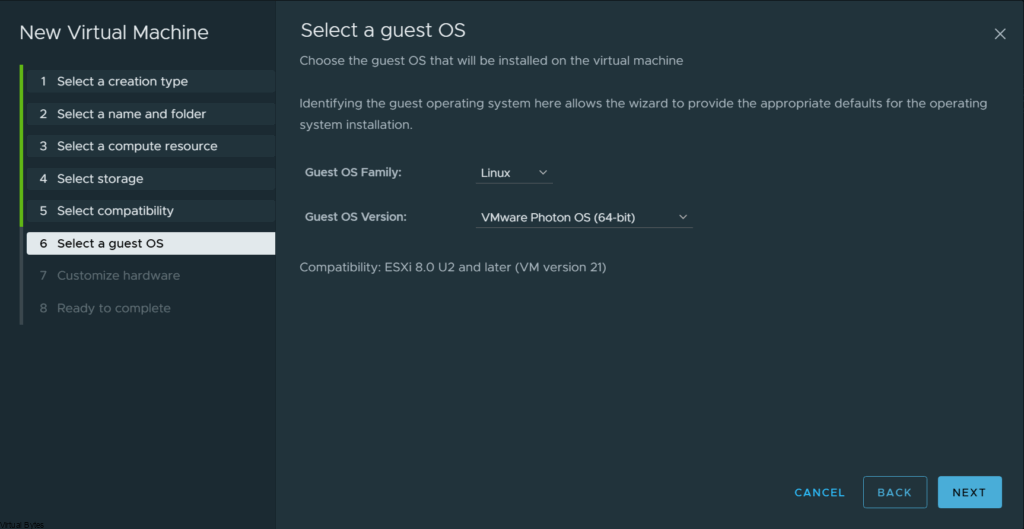

Select VMware Photon OS (64-bit)

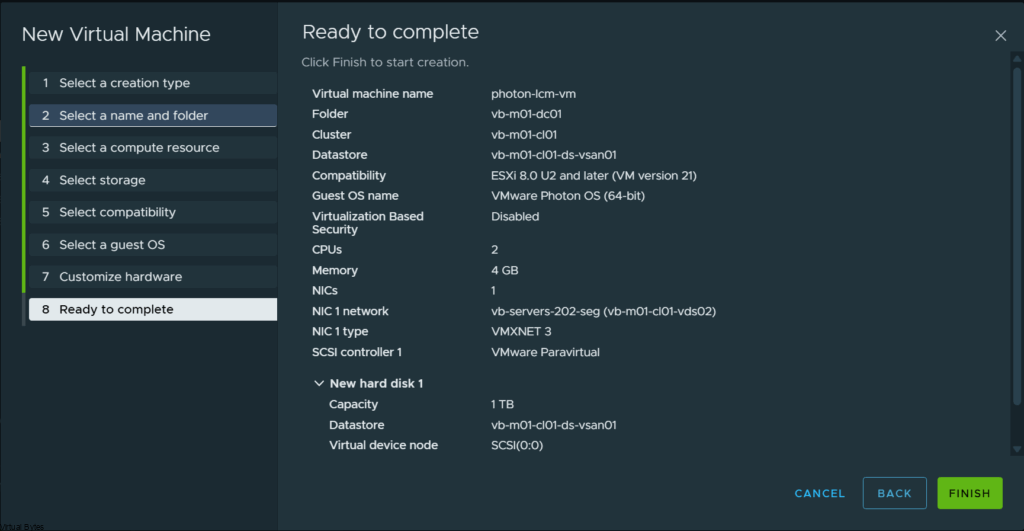

Configure the virtual machine with the following specifications: 2 vCPUs, 4GB of memory, a 1TB disk, and network access. The number of CPUs and memory can be increased later if required.

Deploy!

Now, that you have deployed the virtual machine, lets connect to it via VMRC and mount the Photon OS ISO.

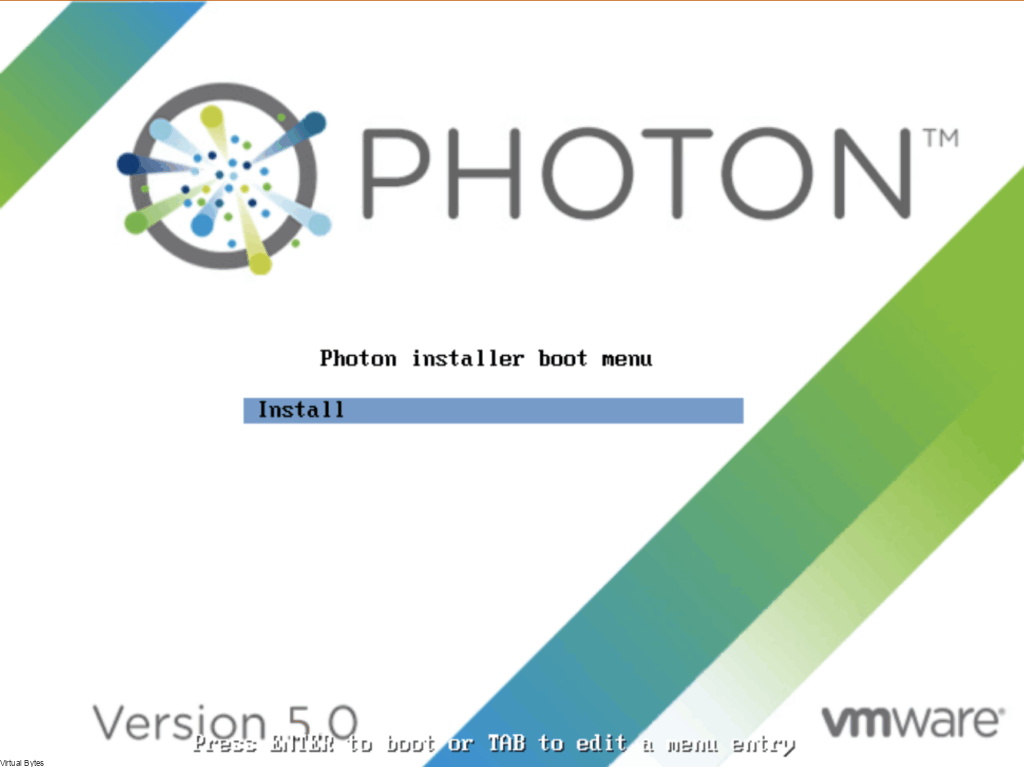

Install ->

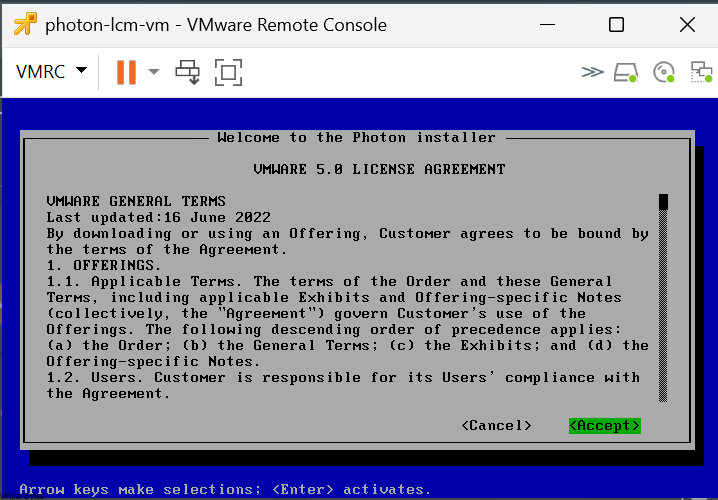

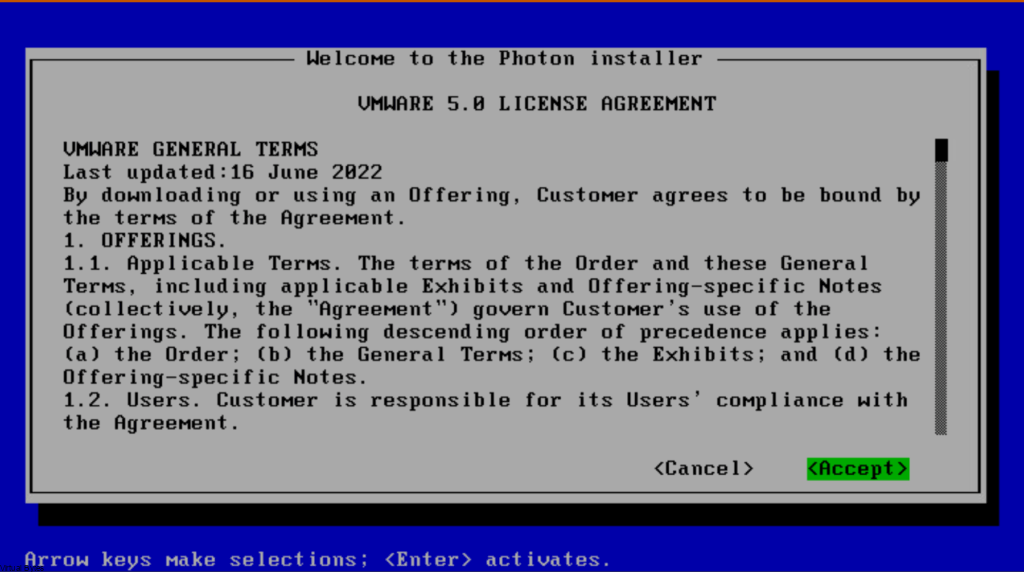

EULA ->

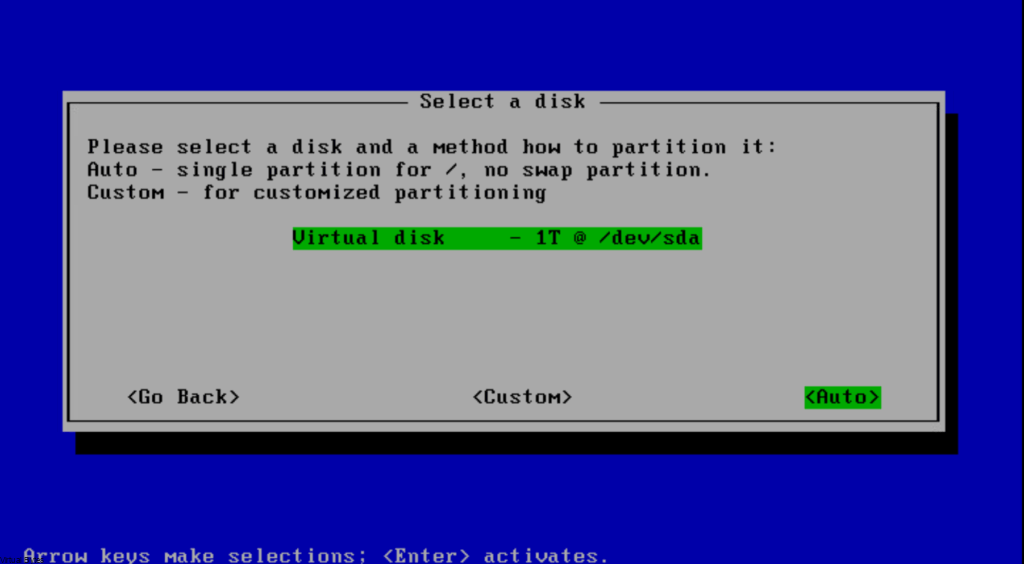

Select the 1TB disk. I kept the partitioning on Auto, but you can manually partition it if you prefer.

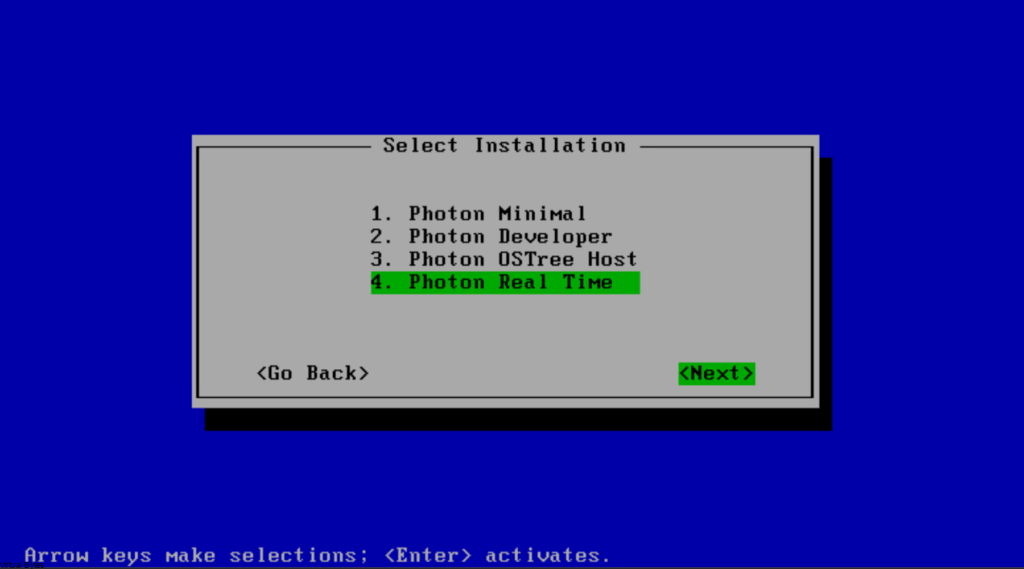

Select, Photon Real Time ->

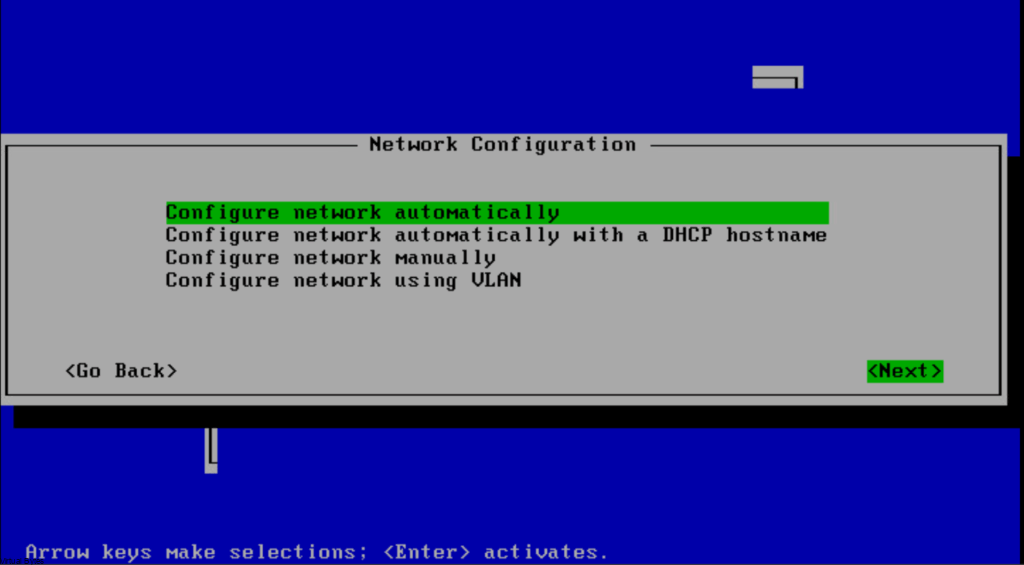

Since my Photon LCM VM is deploying on an NSX segment with DHCP, I left it on automatic, but the configuration will vary depending on your implementation.

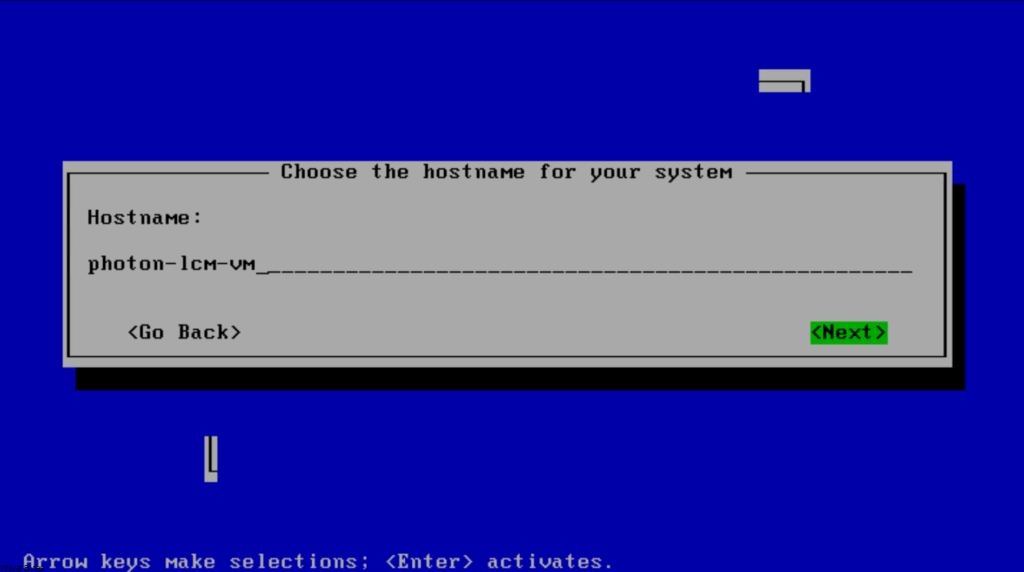

Set Host name ->

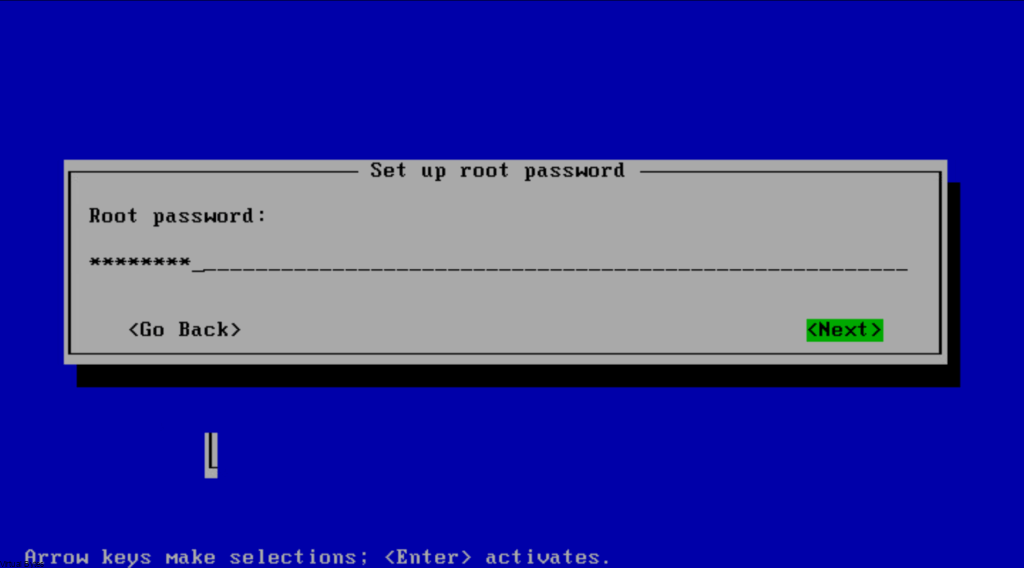

Password ->

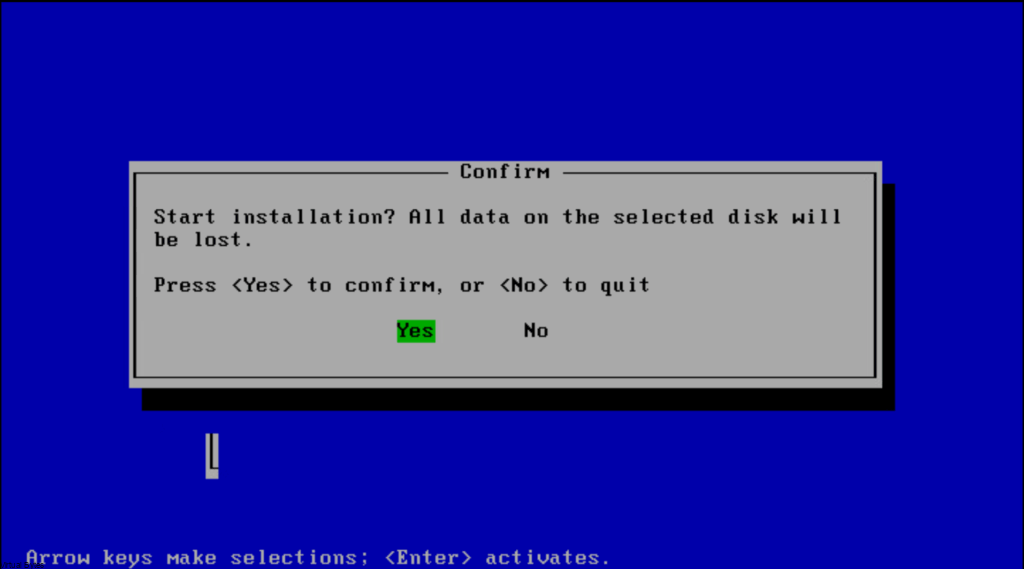

Start Install ->

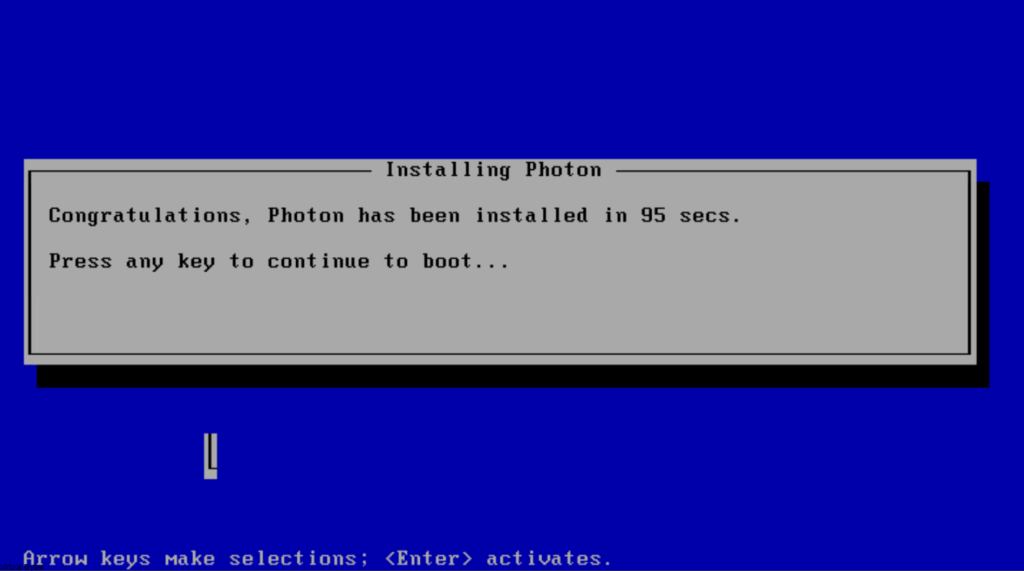

Installing…

Lets boot up to the new Photon VM!

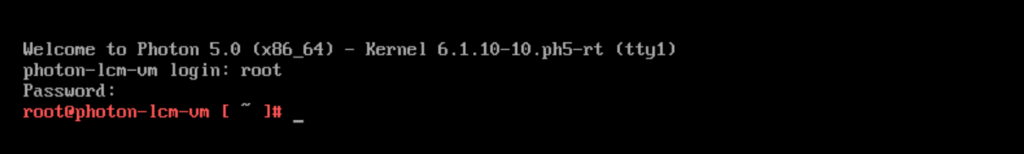

Connect to the Photon OS VM via Remote Console and log in.

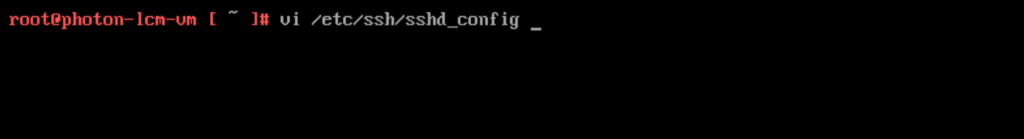

Let’s edit the sshd_config file to allow root to connect via SSH.

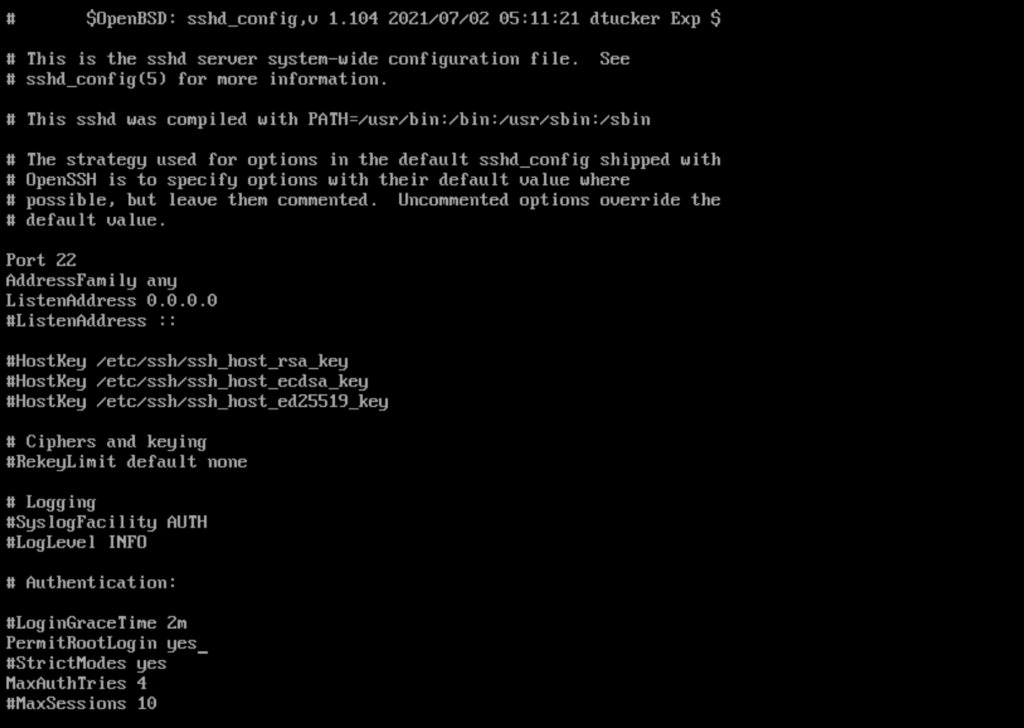

vi /etc/ssh/sshd_config

Update the following config and uncomment

Port 22
AddressFamily any
ListenAddress 0.0.0.0

Change PermitRootLogin to yes from no

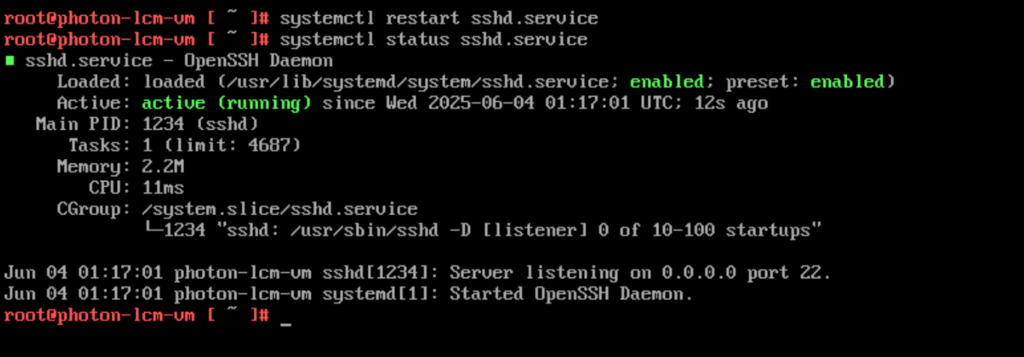

Restart SSH Service

systemctl restart sshd.service

Now that we have completed deploying Photon OS and preparing the virtual machine so that we can SSH into it, we needed to update the SSH configurations within the sshd_config file to allow root to SSH and allow port 22 to listen. Next, we will upload the LCM Bundle Utility via WinSCP

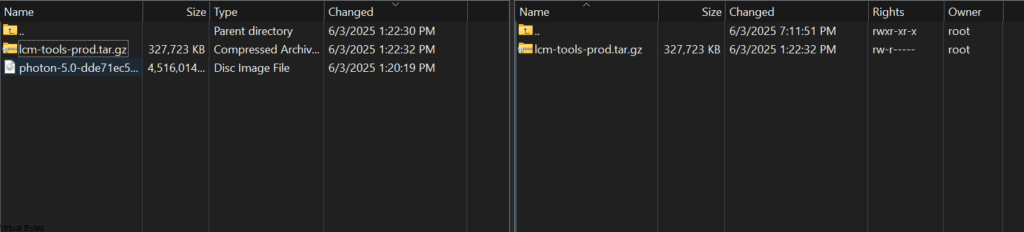

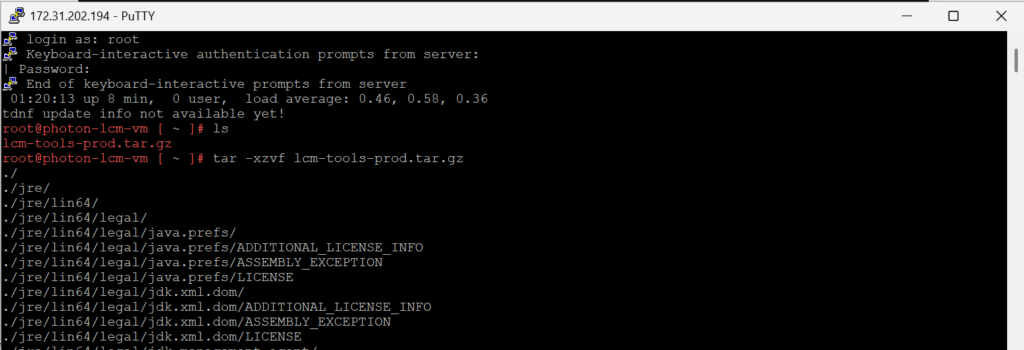

Connect via PuTTY, and then we will untar the lcm-tools-prod.tar.gz.

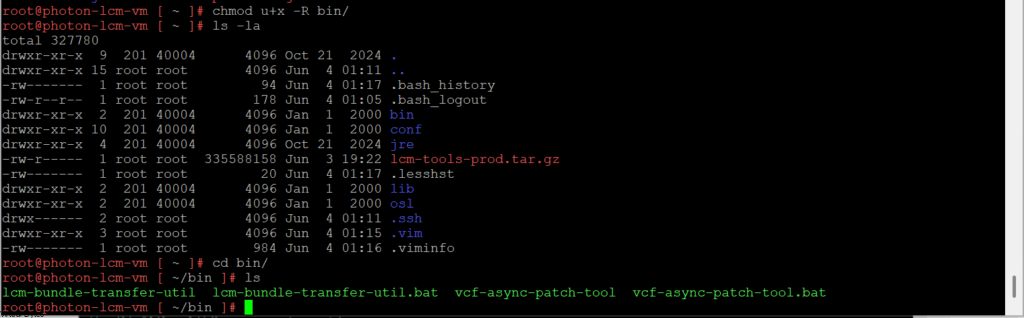

We will need to make the bin directory with lcm-bundle-transfer-util executable

chmod u+x -R bin/

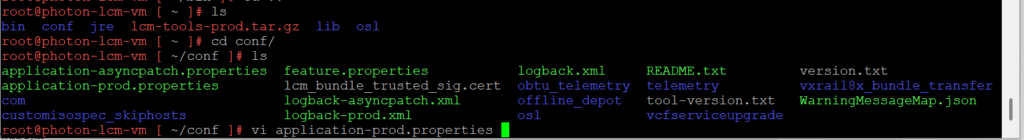

Change directory to conf. Next, we will use vi to edit the application-prod.properties file and update the required fields below.”

You will need to tailor the Depot Properties to accommodate the Broadcom Download Token. More information is available here.

################### Depot properties ########################
lcm.depot.adapter.certificateCheckEnabled=false
lcm.depot.adapter.port=443
lcm.depot.adapter.host=dl.broadcom.com
lcm.depot.adapter.remote.rootDir=/<Token Here>/PROD
lcm.depot.adapter.remote.repoDir=/COMP/SDDC_MANAGER_VCF
lcm.depot.adapter.remote.index.filename=index.v3
lcm.depot.adapter.remote.offline.index.filename=index.offline
lcm.depot.adapter.local.baseDir=${lcm.bundle.download.default.dir}/tmp
lcm.depot.adapter.local.input.spec.dirname=asyncPatchSpecs
lcm.depot.adapter.local.compatibility.path=v1/products/bundles/type/vcf-lcm-bundle
lcm.depot.adapter.enableBundleSignatureValidation=true
lcm.bundle.manifest.dirname=manifests
lcm.bundle.dirname=bundles

lcm.depot.adapter.lcmManifestFile=lcmManifest.json
lcm.depot.adapter.remote.productVersionCatalog.filename=productVersionCatalog.json
lcm.depot.adapter.remote.lcmManifestDir=/COMP/SDDC_MANAGER_VCF/lcm/manifest
lcm.depot.adapter.enableBundleChecksumValidation=true

lcm.depot.adapter.enableLatestToolVersionCheck=true
lcm.depot.adapter.remote.bundletransferconfig.repoDir:/COMP/SDDC_MANAGER_VCF/obtu

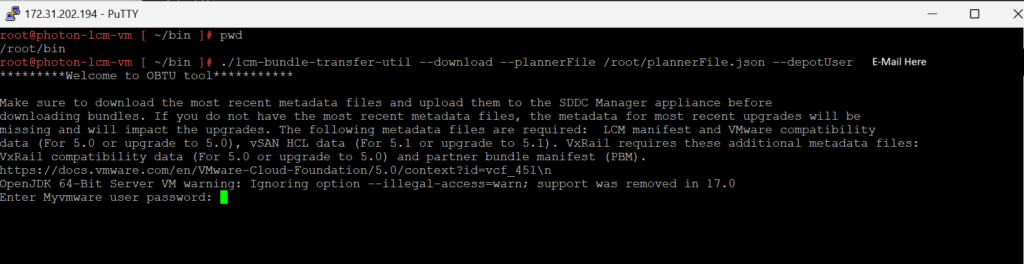

Now that we have updated the applications-prod.properties file, let’s run it. I have extracted my PlannerFile and uploaded it to /root/plannerFile.json.

./lcm-bundle-transfer-util --download --plannerFile /root/plannerFile.json --depotUser <Email-Here>

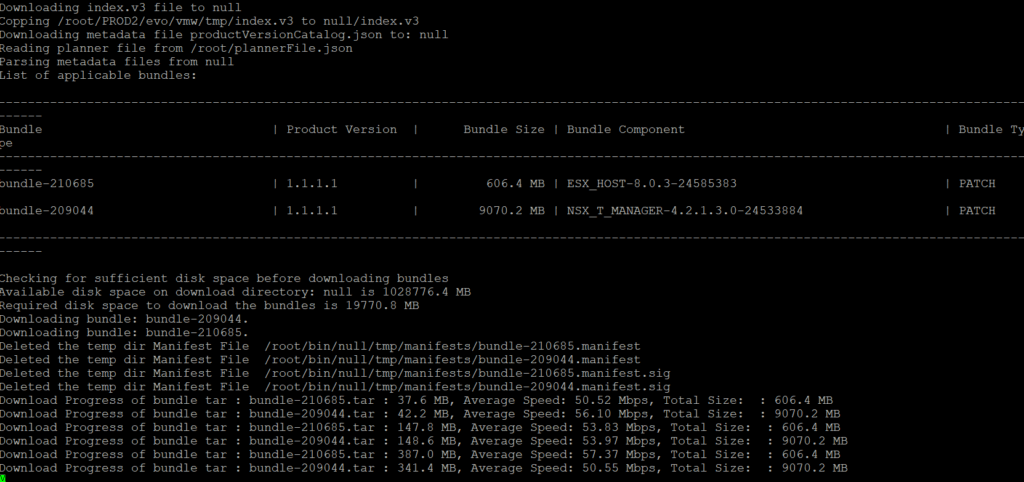

It is working on Photon OS! The download process has begun.

Deploying the VMware Lifecycle Manager Bundle Utility on Photon OS is a worthwhile investment for any administrator responsible for a VMware Cloud Foundation environment. This guide has provided the foundation for simplifying your appliance updates, reducing operational overhead, and ensuring a more stable and efficient infrastructure. Embrace this approach and take control of your VCF updates!

June 3, 2025 0 comments 447 views

VMware Cloud Foundation

VMware Cloud Foundation: Don’t Forget About SSO Service Accounts

by Tommy Grot May 14, 2025

written by Tommy Grot 5 minutes read

VMware Cloud Foundation (VCF) delivers a modern, automated infrastructure. A vital, but frequently neglected, element of its operation is enabling password rotations. The svc-nsx-vc-fqdn service account within the vCenter Server SSO domain and SDDC Manager. This account is critical for NSX or LCM functionality and integration between solutions, and its failure – typically due to an expired or incorrect password – can cause significant disruption to your VCF environment. This post will highlight the importance of svc-nsx-vc-fqdn, explain the impact of a failed account, and provide proactive measures to ensure its ongoing health and prevent costly outages.

Error Message – “NSX is integrated with vLCM feature of vSphere system. Cannot disable two way authentication and service account creation functionality”

Verifying Service Account with CURL

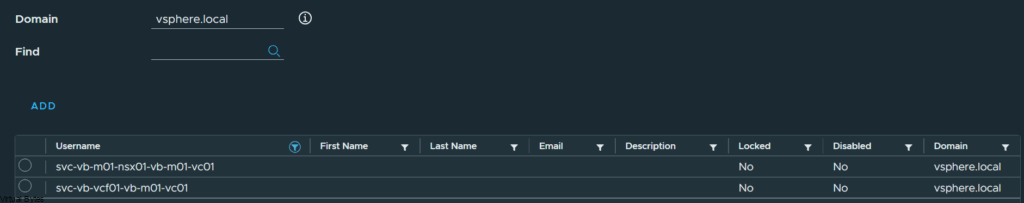

When the SDDC Manager Password Management UI displays an invalid or outdated timestamp for the svc-nsx-vc-fqdn service account, it indicates a potential synchronization issue between SDDC Manager and the underlying vCenter SSO domain. This can lead to authentication problems and network connectivity issues within your VMware Cloud Foundation environment. As illustrated below, the ‘Last Modified Date’ is incorrectly displayed as 11/10/23 1:03PM. Let’s examine this issue in more detail.

Addressing SDDC Manager UI Timestamp Discrepancies

To troubleshoot this, administrators can use the curl command to directly query the VCF SDDC API and verify the existence and timestamp of the svc-nsx-vc-fqdn object. This bypasses the SDDC Manager UI and provides a more accurate view of the account’s state.

SSH Into SDDC Manager – ( Prepare your command using your SSO account credentials. While ‘[email protected]‘ may be a default account, you must retrieve the current, rotated password using the lookup_password utility within SDDC Manager.
Elevate to root ” su – “

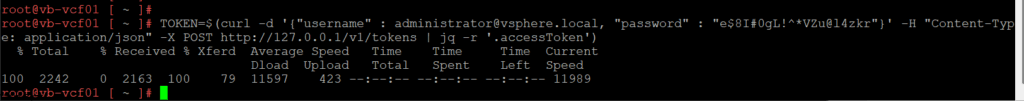

Run the Bearer Token curl to retrieve a access token

TOKEN=$(curl -d '{"username" : <sso_username>, "password" : "<sso_password>"}' -H "Content-Type: application/json" -X POST http://127.0.0.1/v1/tokens | jq -r '.accessToken')

Once we have gotten the Bearer Token we are now able to execute the next CURL command with syntax below:

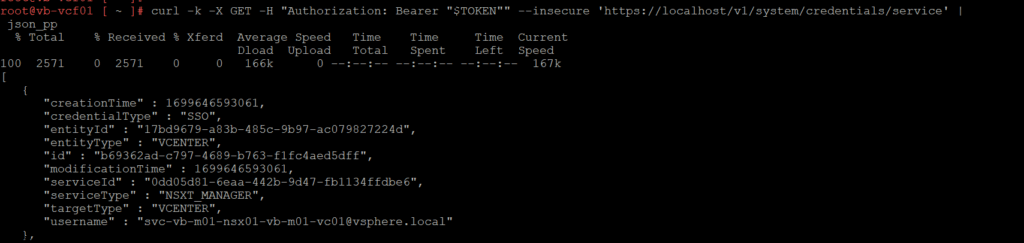

curl -k -X GET -H "Authorization: Bearer "$TOKEN"" --insecure 'https://localhost/v1/system/credentials/service' | json_pp

So, now that we have execute the CURL command above you will get a detailed JSON API back which has all the creation times and ensuring that the SSO Service account still exists and has not disappeared even though the SDDC Manager UI is showing — or incorrect timestamp of last time it was active / updated / modified.

{
"creationTime" : 1699646593061, #This is the timestamp representing when the object was created
"credentialType" : "SSO" #This is indicating that it is apart of the SSO Domain
"entityId" : "17bd9679-a83b-485c-9b97-ac079827224d", # Unique identifier which is stored in the VCF SDDC Database.
"entityType" : "VCENTER", #Displays that this SSO object is related to vCenter
"id" : "b69362ad-c797-4689-b763-f1fc4aed5dff",
"modificationTime" : 1699646593061, #Timestamp showing when last time this object was modified
"serviceId" : "0dd05d81-6eaa-442b-9d47-fb1134ffdbe6", #This is the ID between NSX Managers and vCenter
"serviceType" : "NSXT_MANAGER",
"targetType" : "VCENTER",
"username" : "[email protected]" # Username of service account which is integrating the two solutions
}

Now that you have executed the curl command, you should see output similar to the example JSON I’m providing above, where I’m commenting on the specific API fields of interest and explaining what they mean.

As demonstrated in the JSON outputs for other credentials, the ‘secrets’ field typically contains the encoded password within the API. However, for this specific SSO Account, this field is absent, allowing us to manually set the password on both sides of vCenter and NSX and SDDC and re-establish the connection.

Remediation of Service Account

After verifying that the SSO accounts still exist within SDDC, if you attempt to rotate them using the SDDC Password Manager UI, the initial rotation will often stall at approximately 50% and present a retry or cancel popup. Waiting the 15 minutes suggested in some KB articles and then retrying will result in the process reaching 100%, followed by a rapid failure. This is due to timing differences and synchronization processes between vCenter, NSX and SDDC.

First, lets set a basic password within vCenter SSO for the “[email protected]” Set it to VMware1!VMware1! , after you hit save wait few seconds

After the password has been updated manually via vCenter Users and Groups for the “[email protected]”.

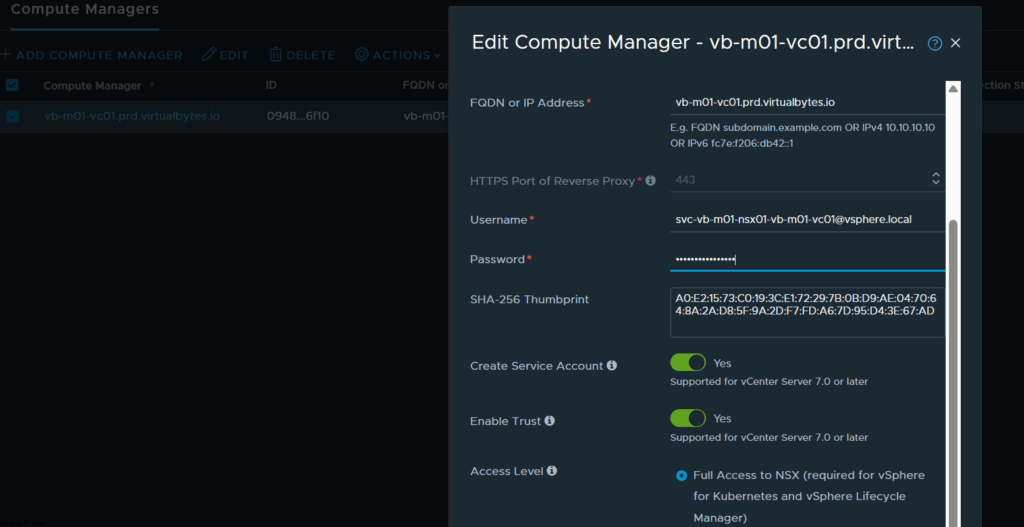

Then log into your NSX Manager – > System -> Fabric -> Compute Managers -> Edit on vCenter Object and click edit on the FQDN | IP Address, and input your svc sso account and password.

Note: Ensure that ‘Create Service Account’ is enabled and ‘Enable Trust’ is also selected. If you encounter an error during the connection process, toggle the ‘Create Service Account’ option, enter the password, save the configuration, and then re-enable the Service Account.

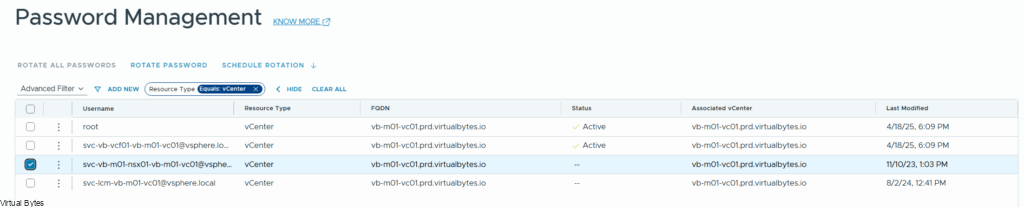

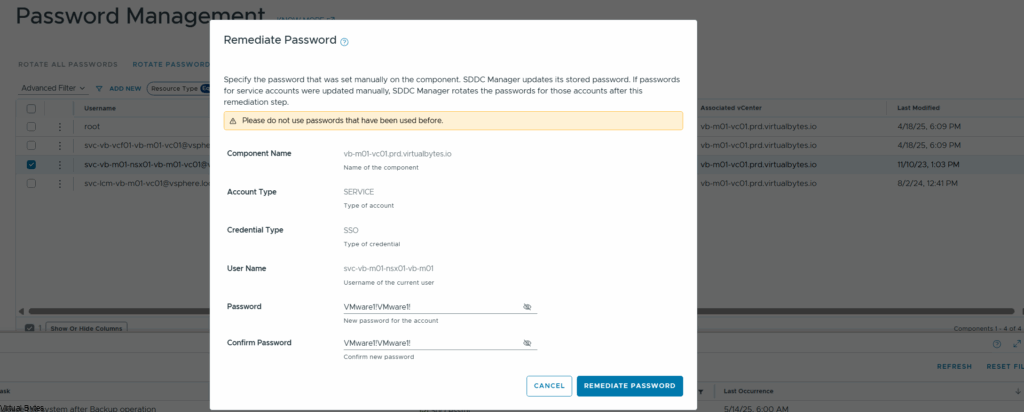

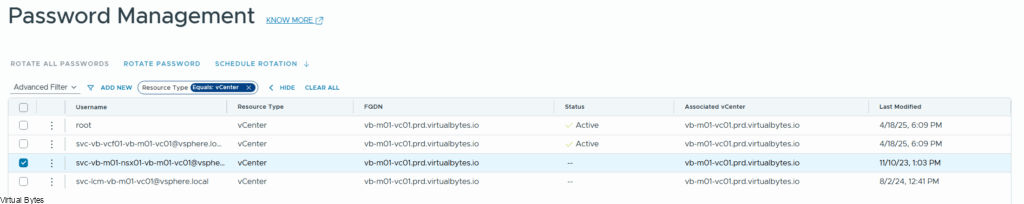

Finally, lets go back into the SDDC Manager -> Password Management -> Filter based on vCenter

Enter the remediated password you previously set within vCenter and NSX. Executing this operation should result in a successful completion task within a few minutes.

Now that two-way communication between vCenter and NSX has been re-established, you can resume standard operations, including enabling vLCM for baseline-controlled patching or image-based deployments.

Beyond the technical steps, this highlights the importance of treating credential management as a proactive, ongoing process. Regular audits, automated password rotation, and diligent verification using methods like the curl command we’ve explored, aren’t merely reactive fixes—they’re essential components of a robust security posture and a resilient infrastructure. Prioritizing these practices ensures that your VMware Cloud Foundation environment remains a reliable and secure foundation for your critical applications and workloads.

May 14, 2025 0 comments 341 views
