Home Data Center – (Current)

by Tommy Grot

For a new fresh start of my home data center project/home lab. This new setup will consist of new equipment.

Overall Cluster Specifications

  • 240GHz 6x Intel Scalable Gold Xeons 6138s
  • 1.5TB DDR4 2400MHz Memory
  • 180TB SAS-SSD/HDD Storage Total

Production Environment & Storage Infrastructure

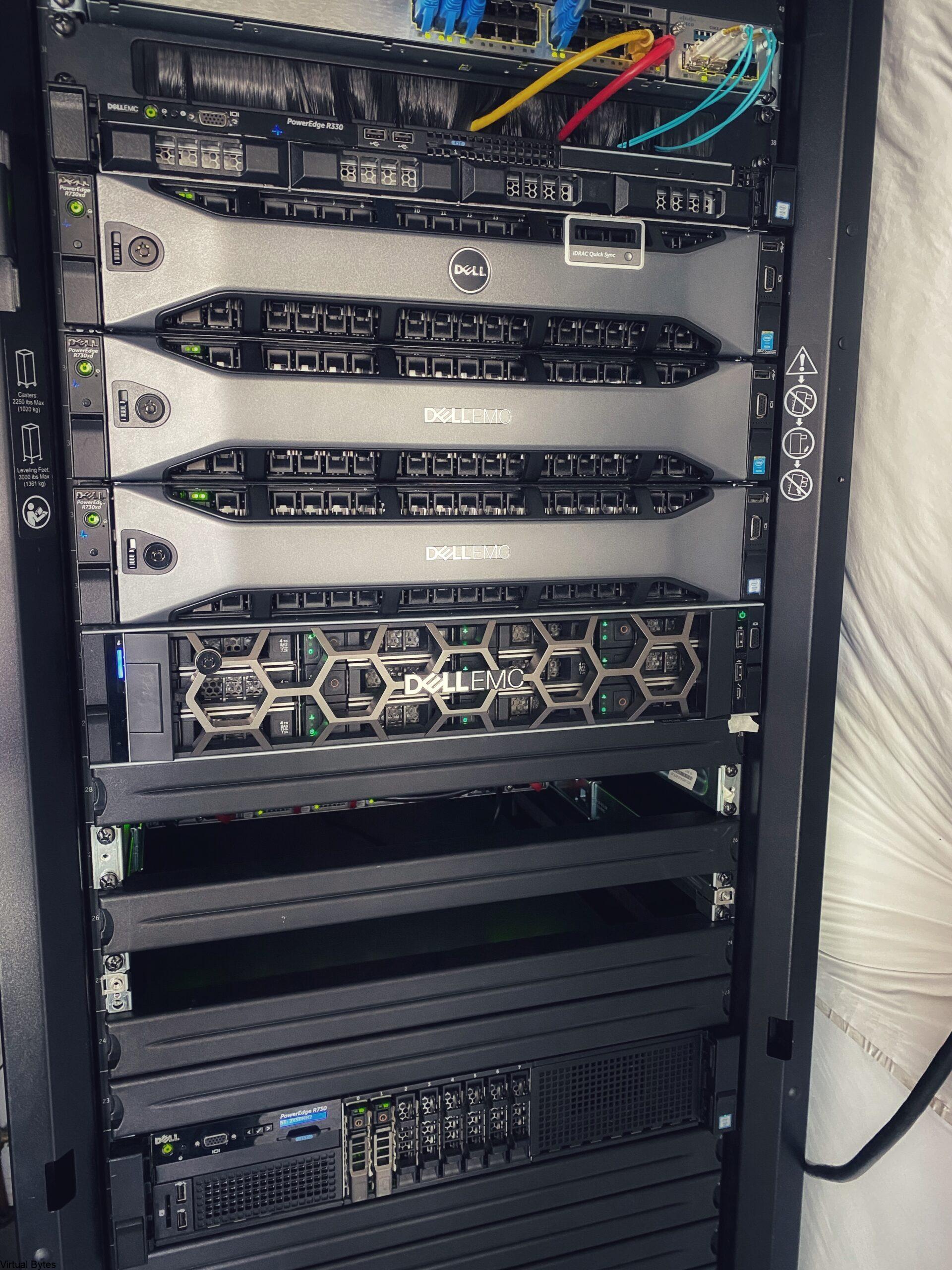

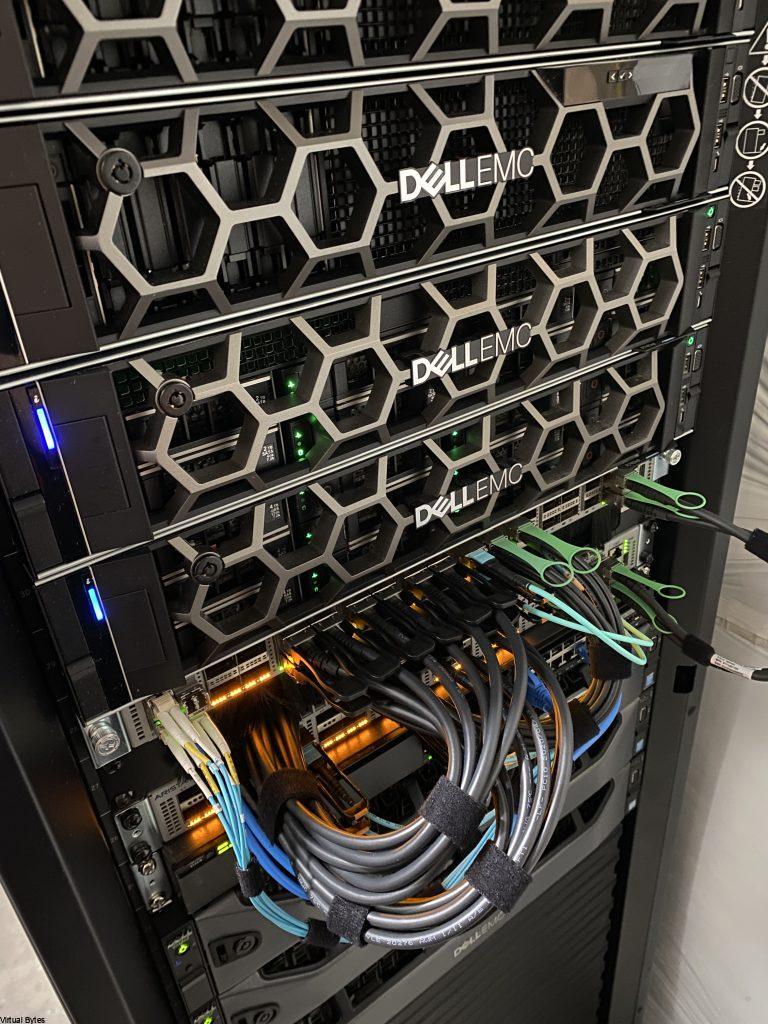

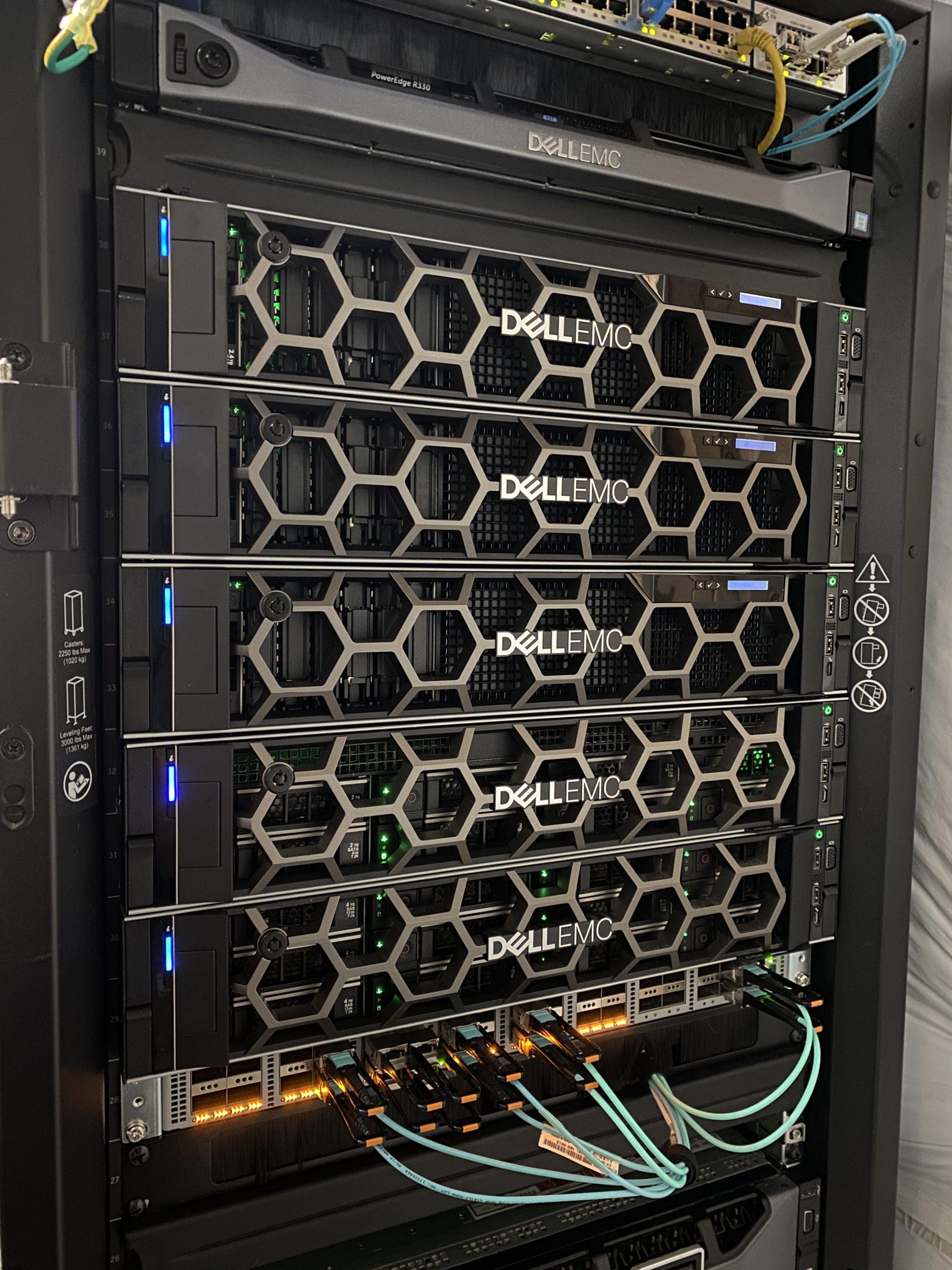

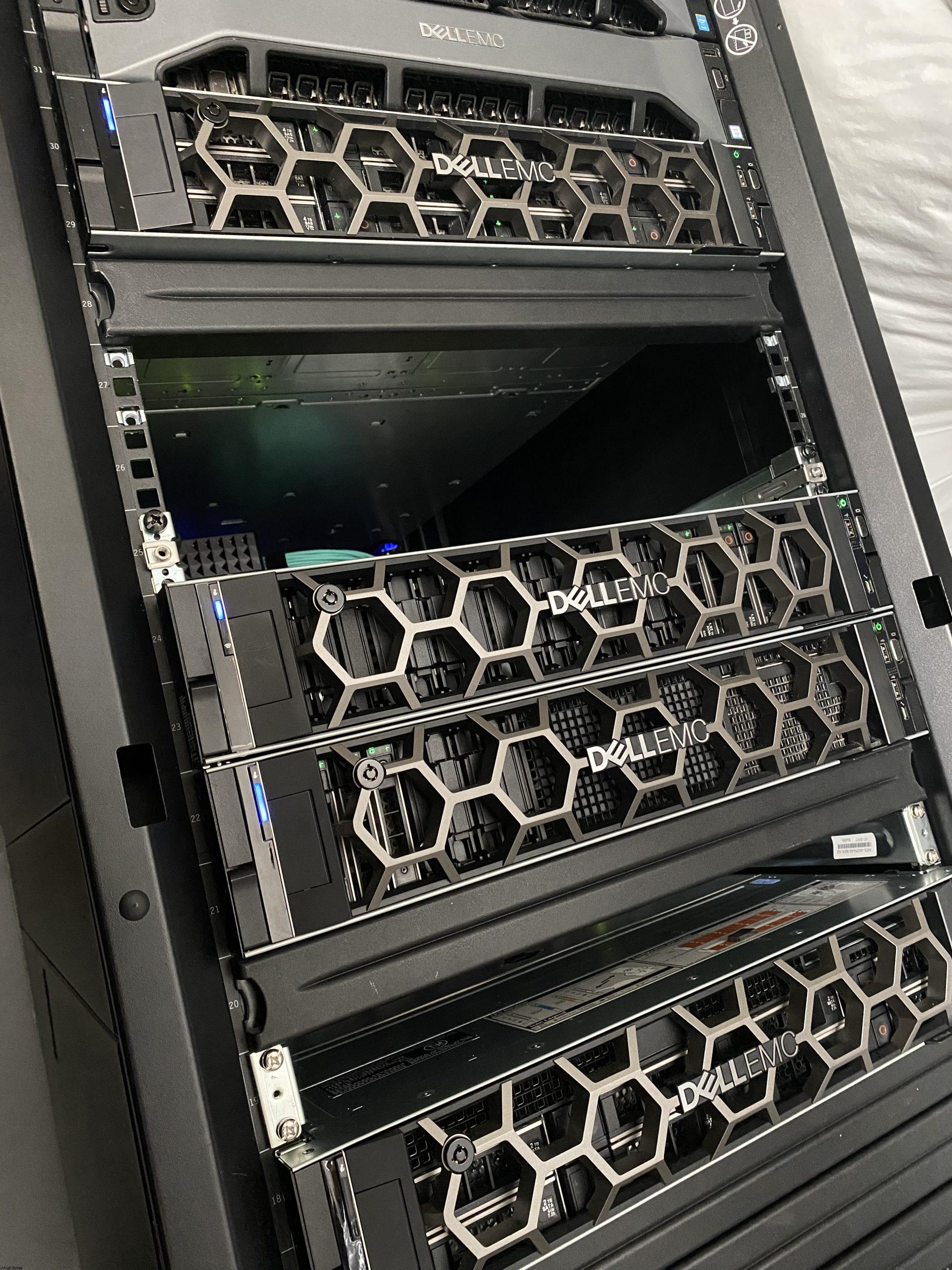

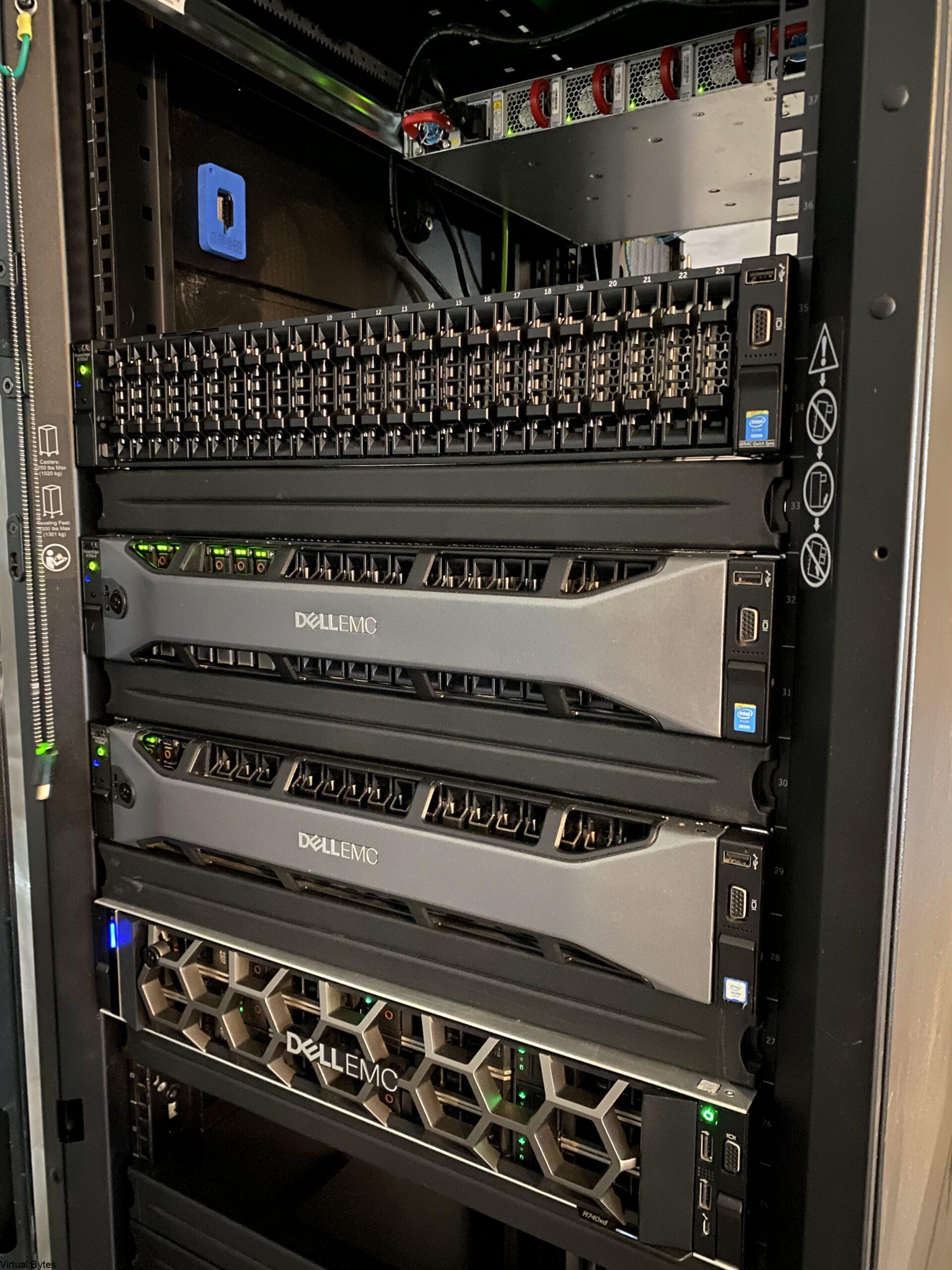

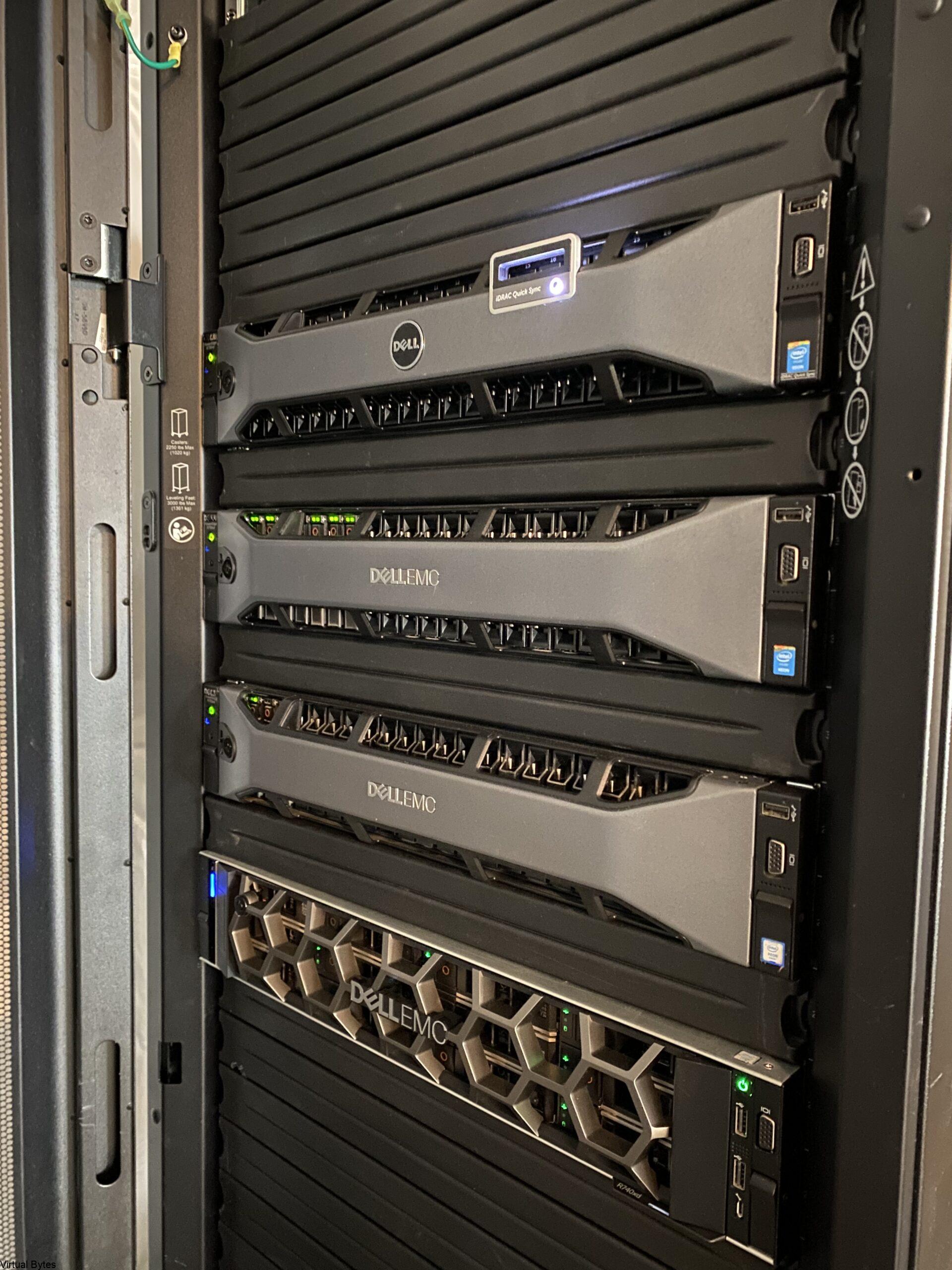

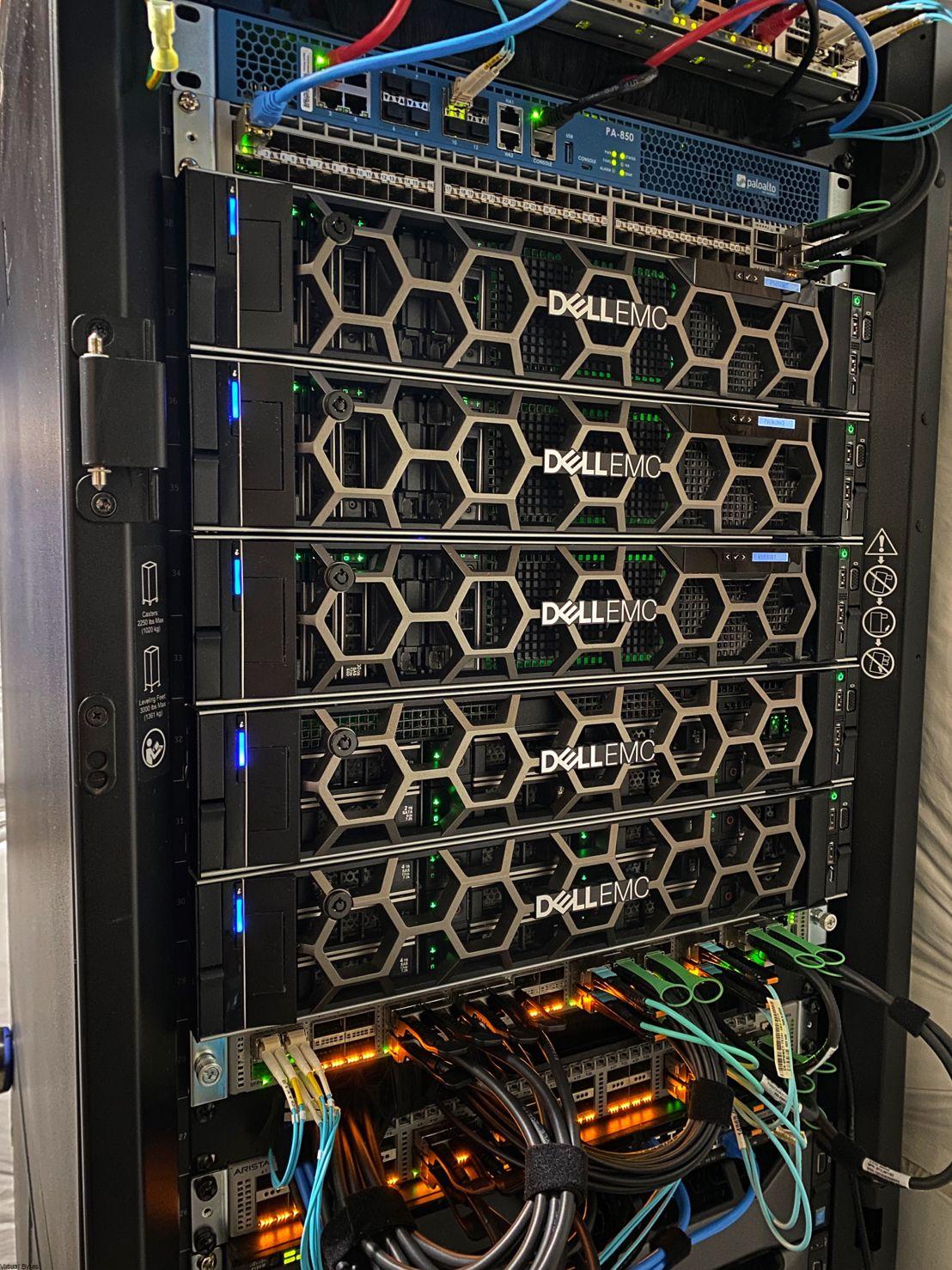

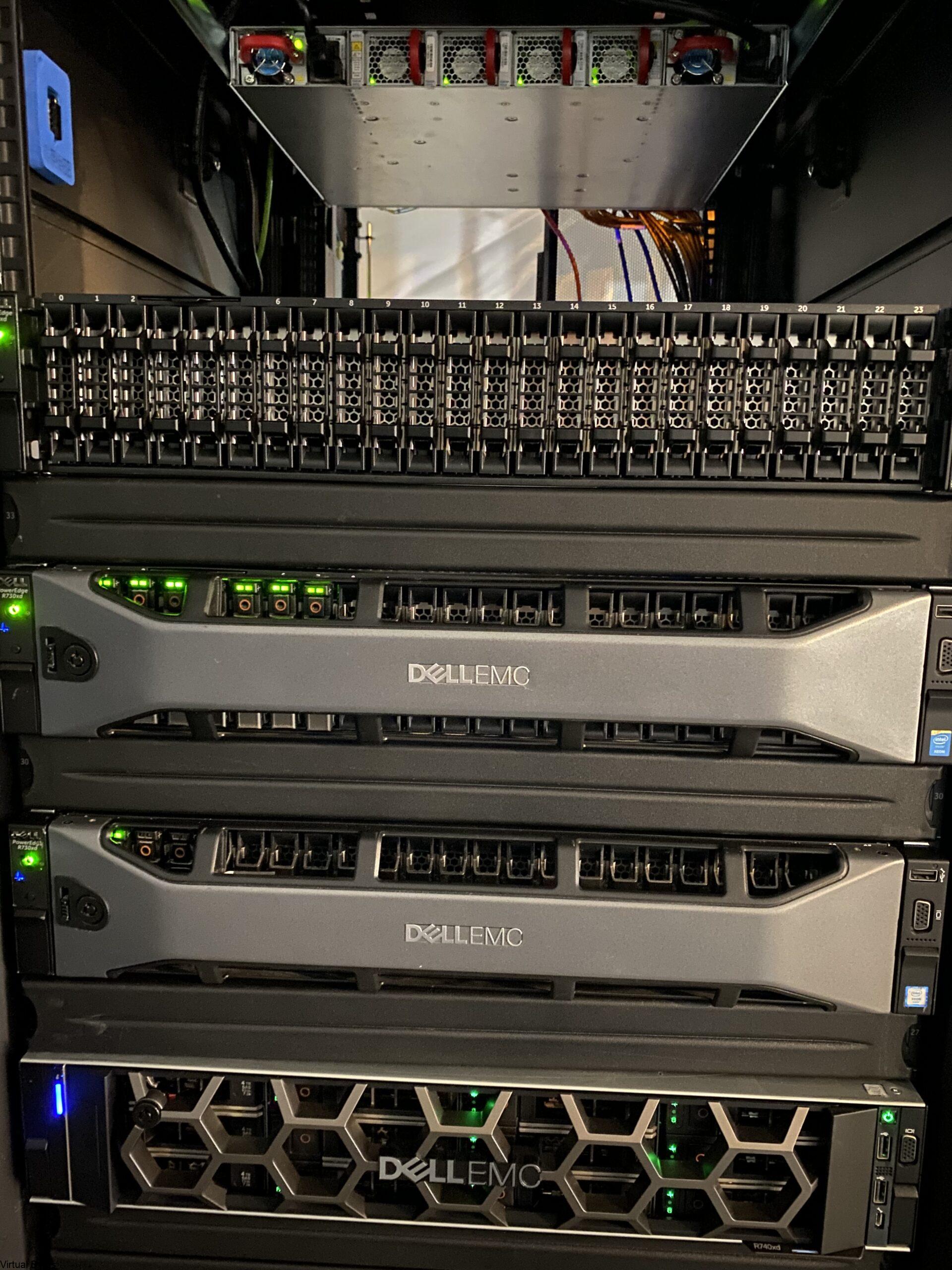

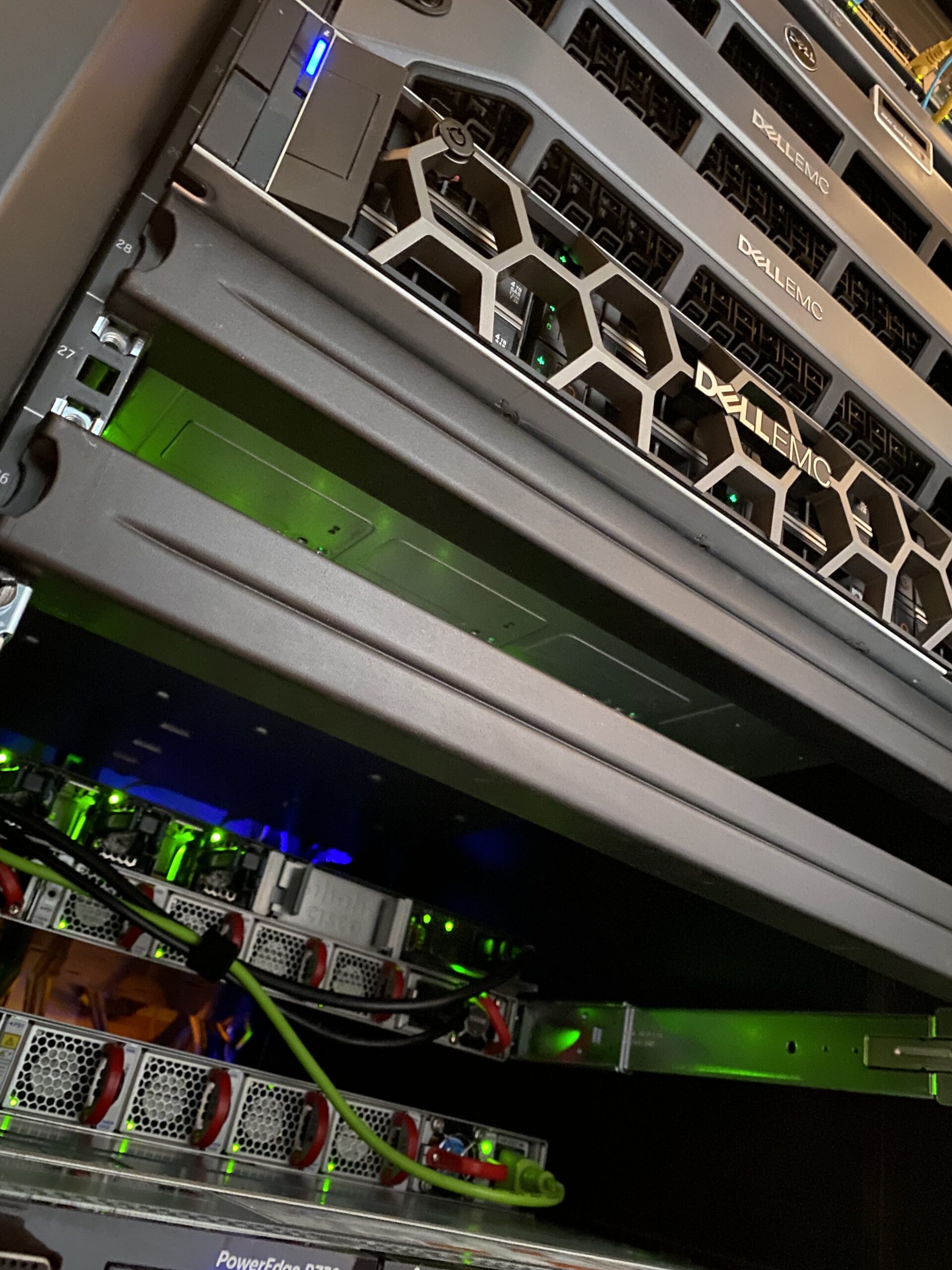

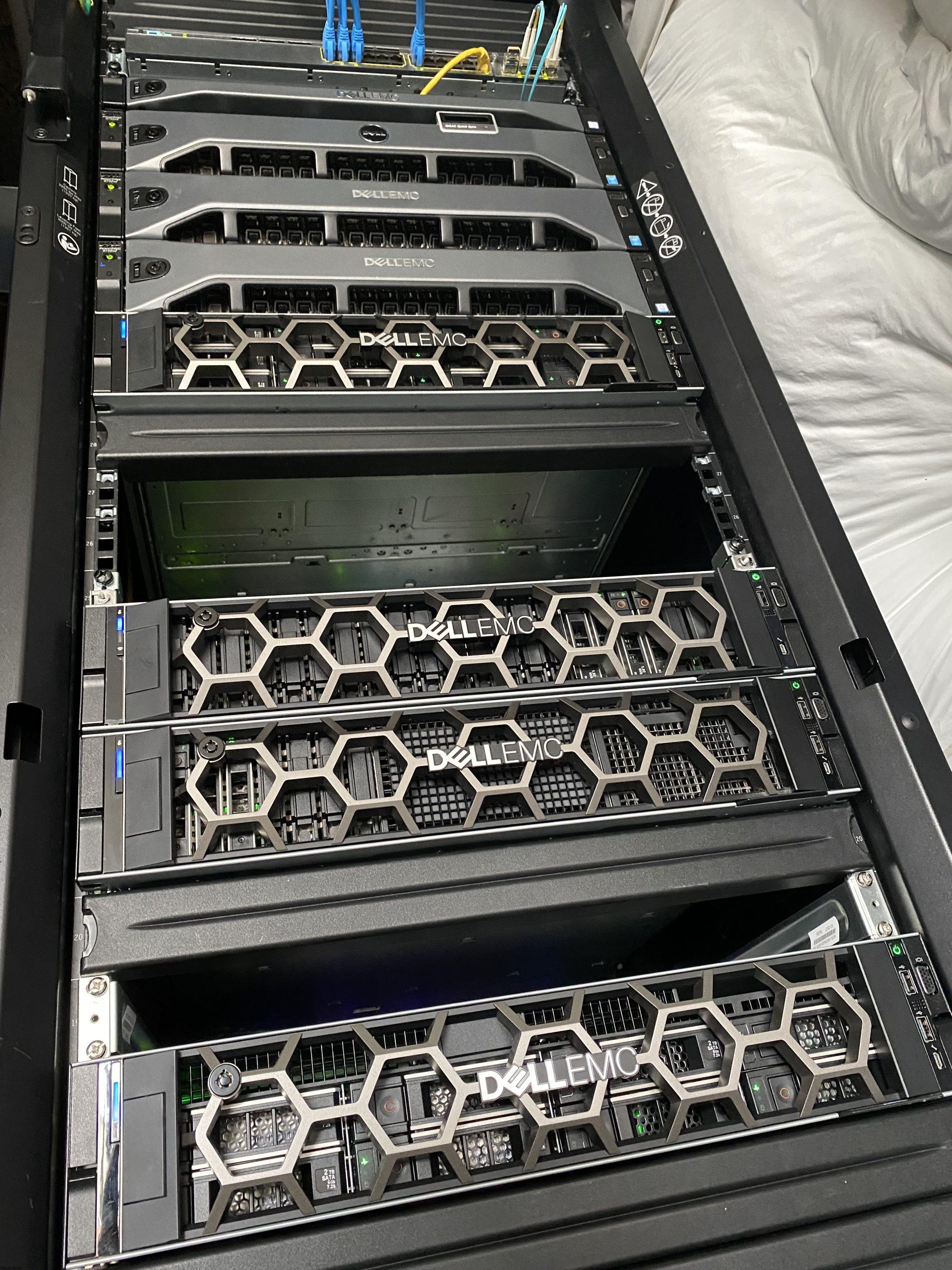

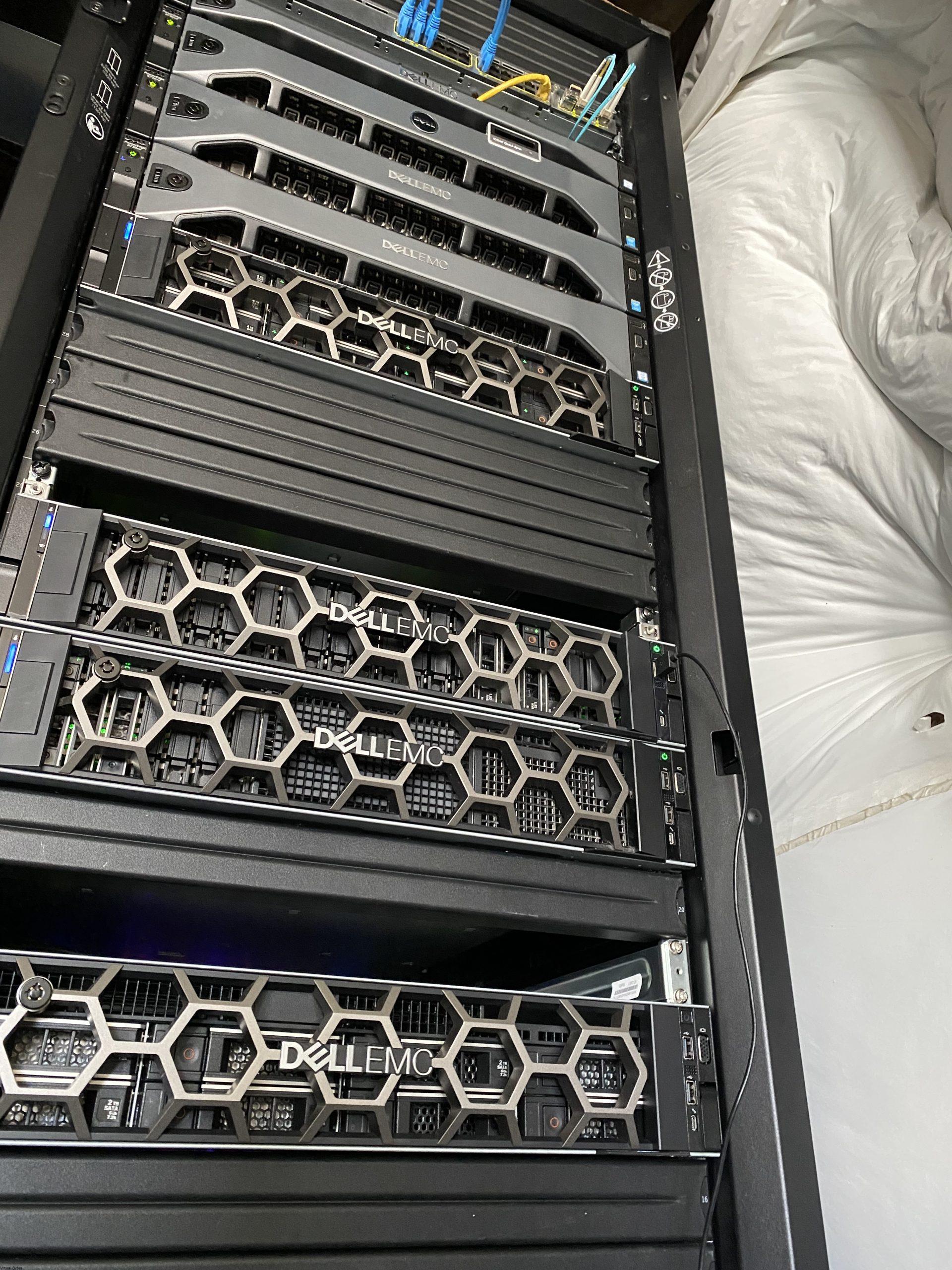

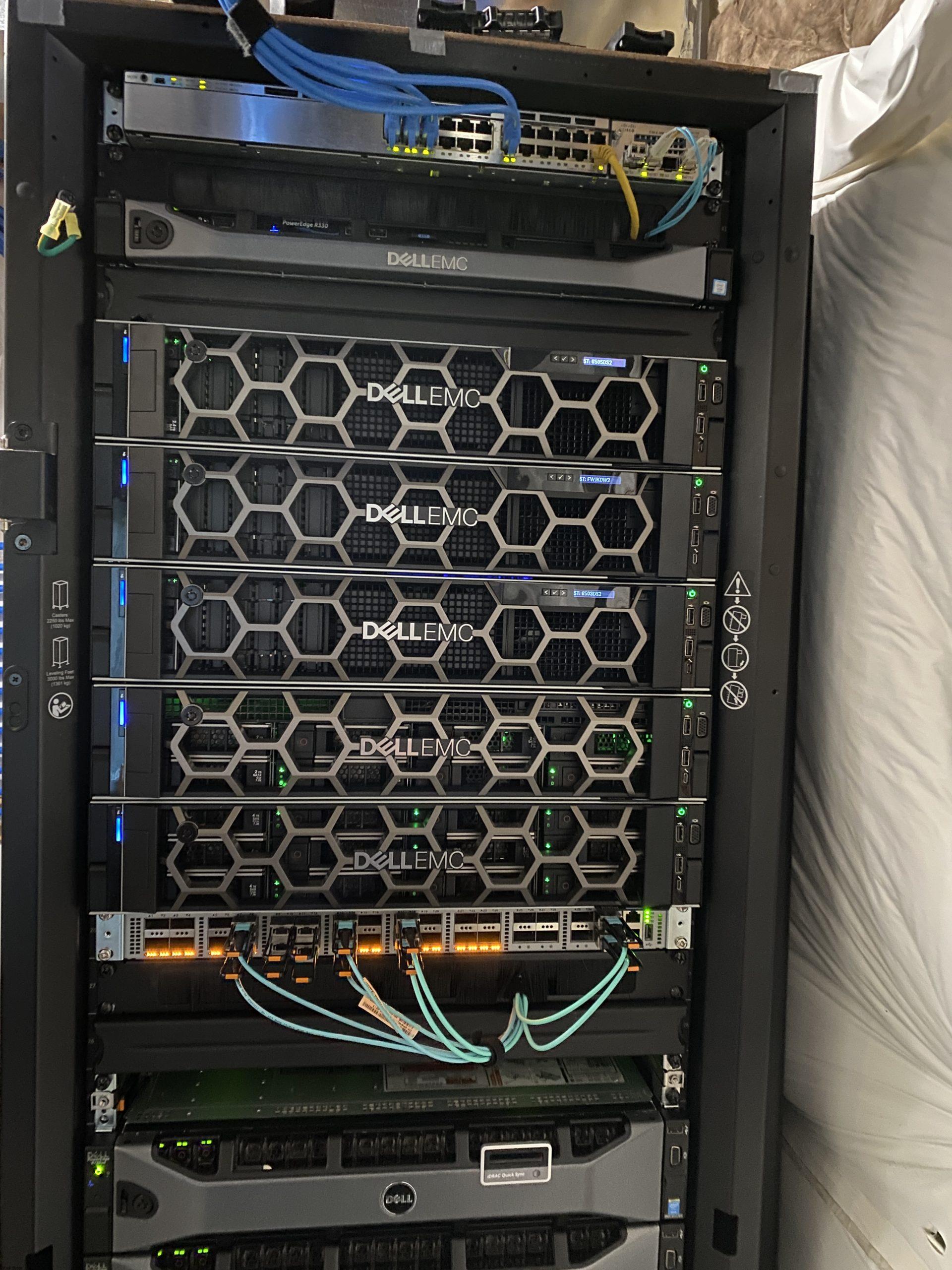

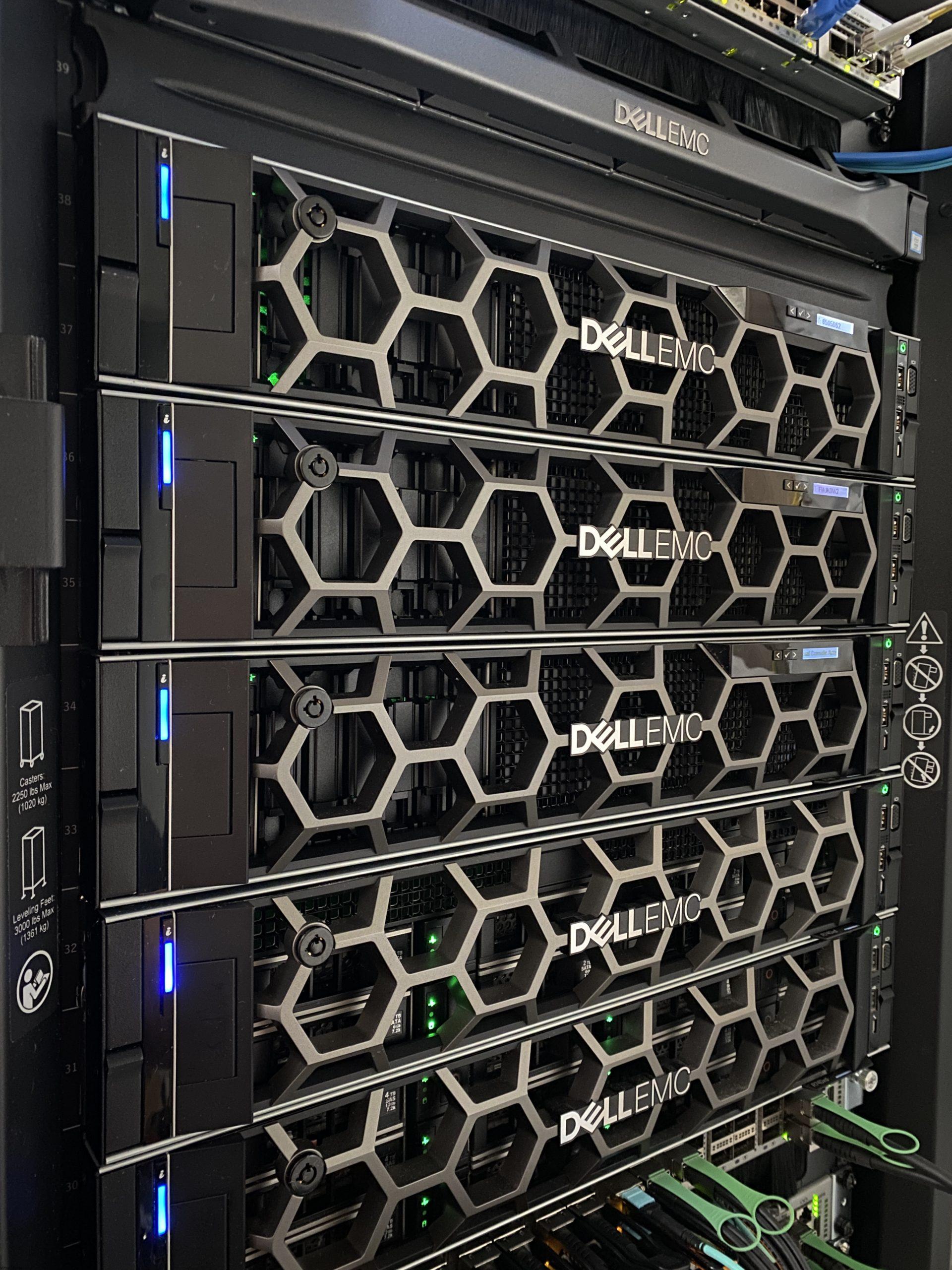

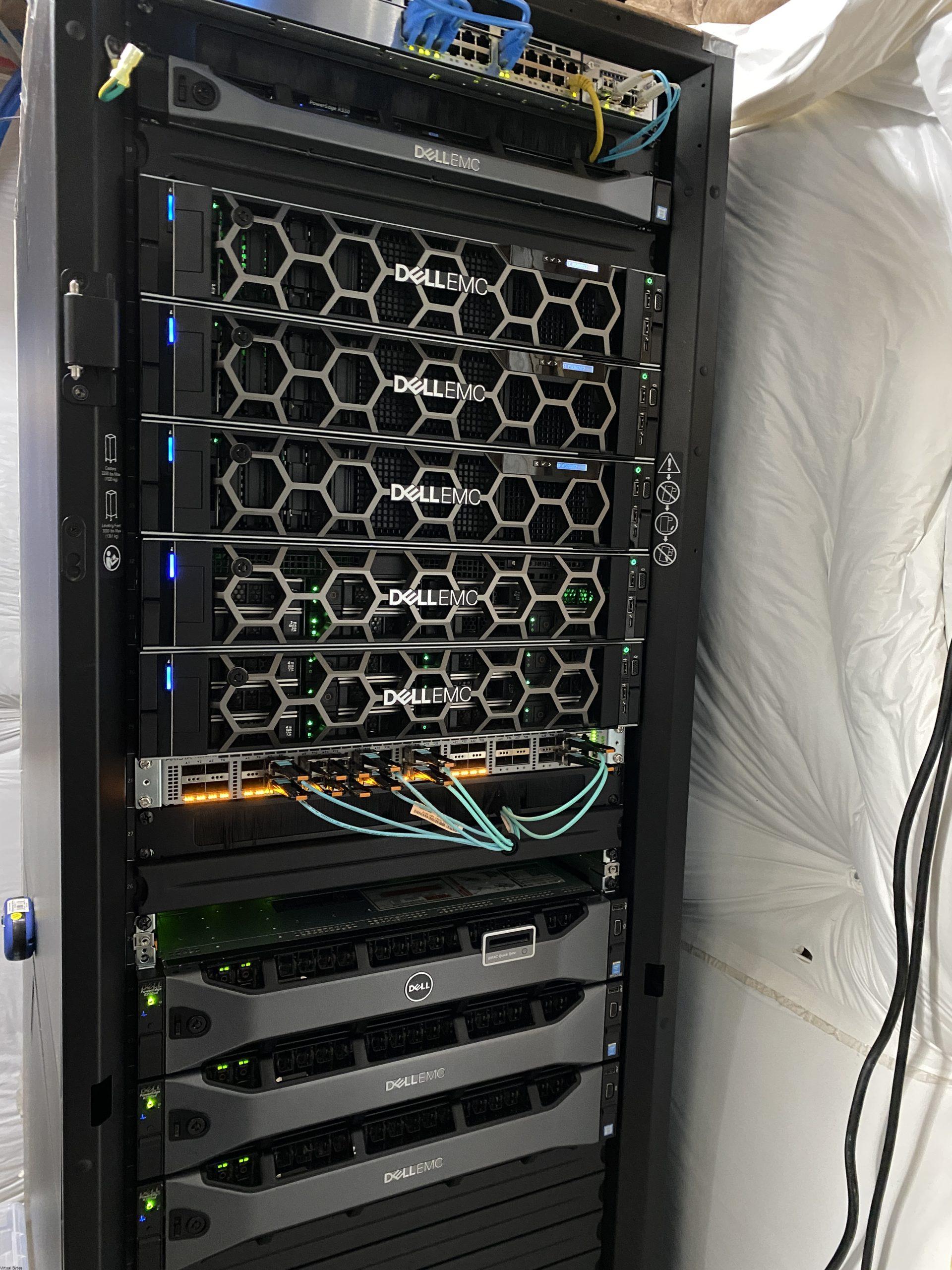

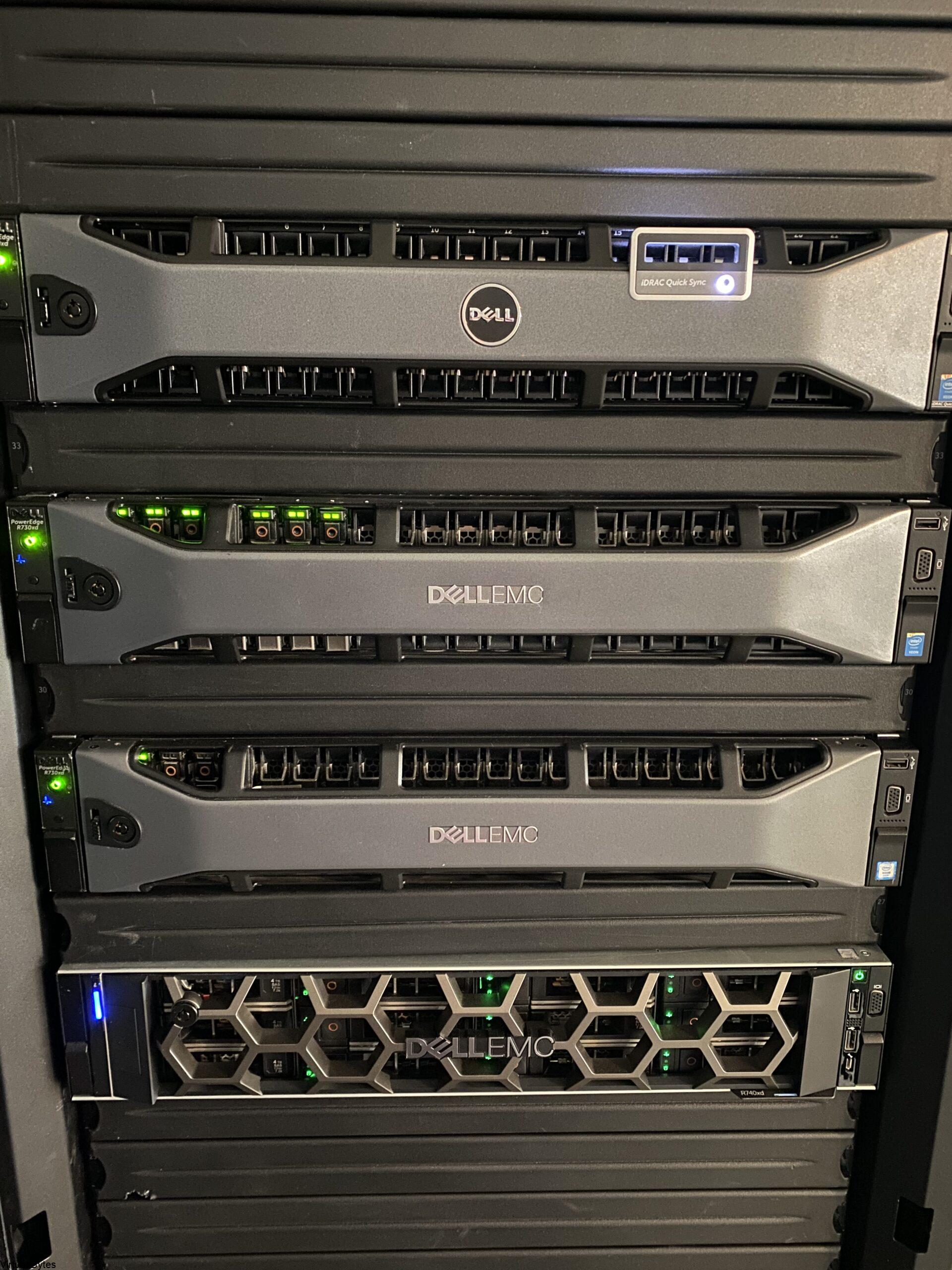

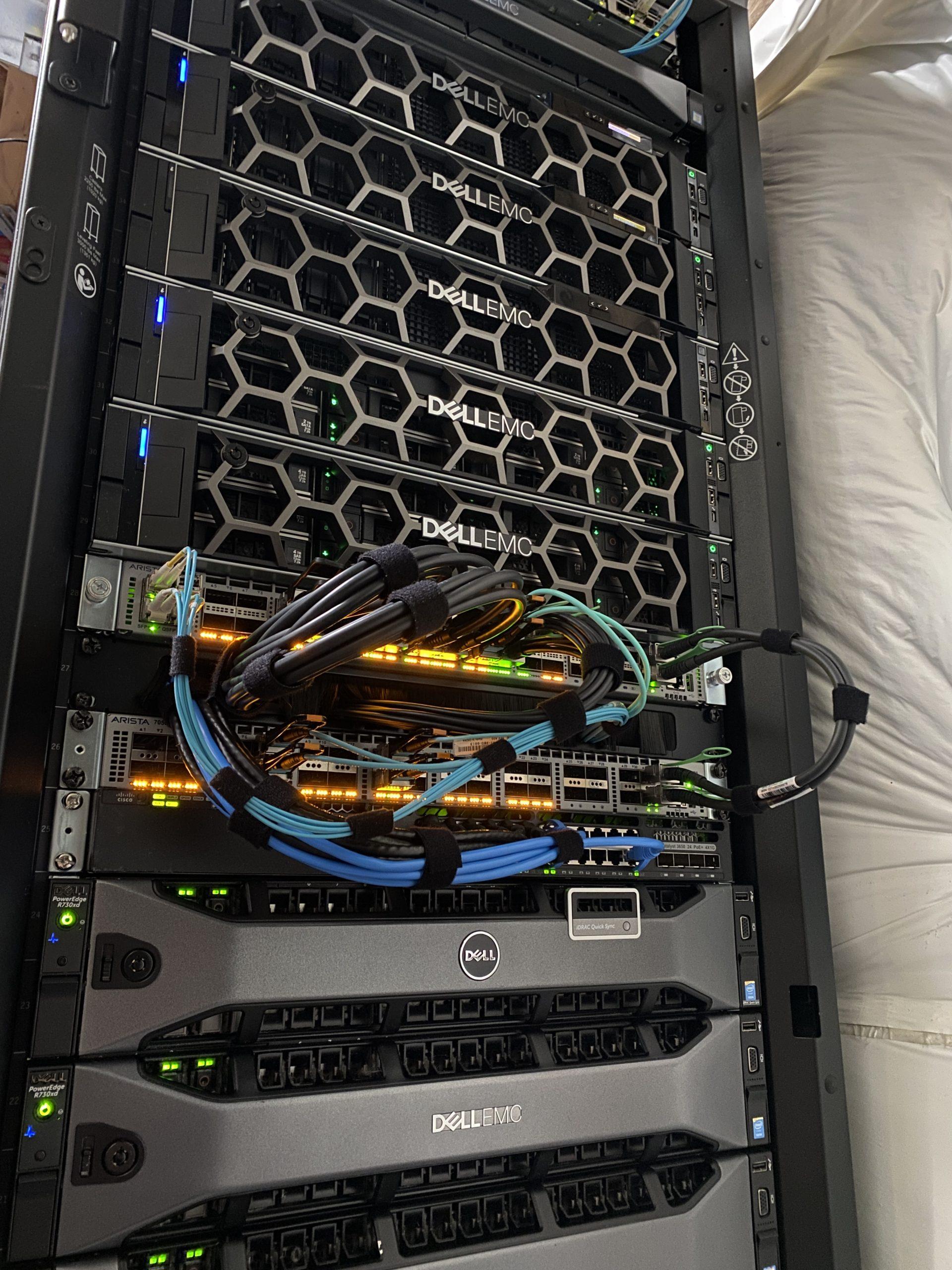

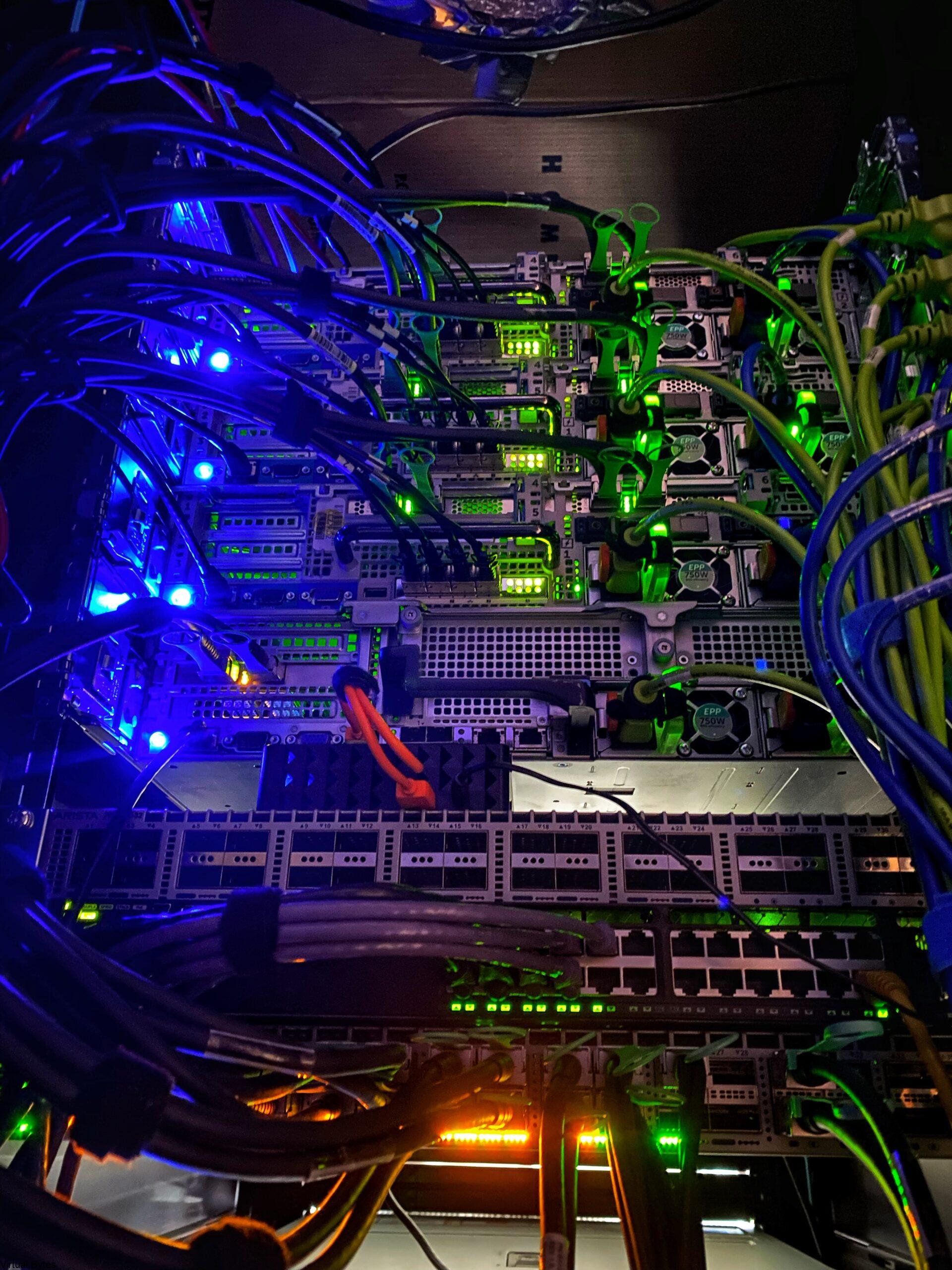

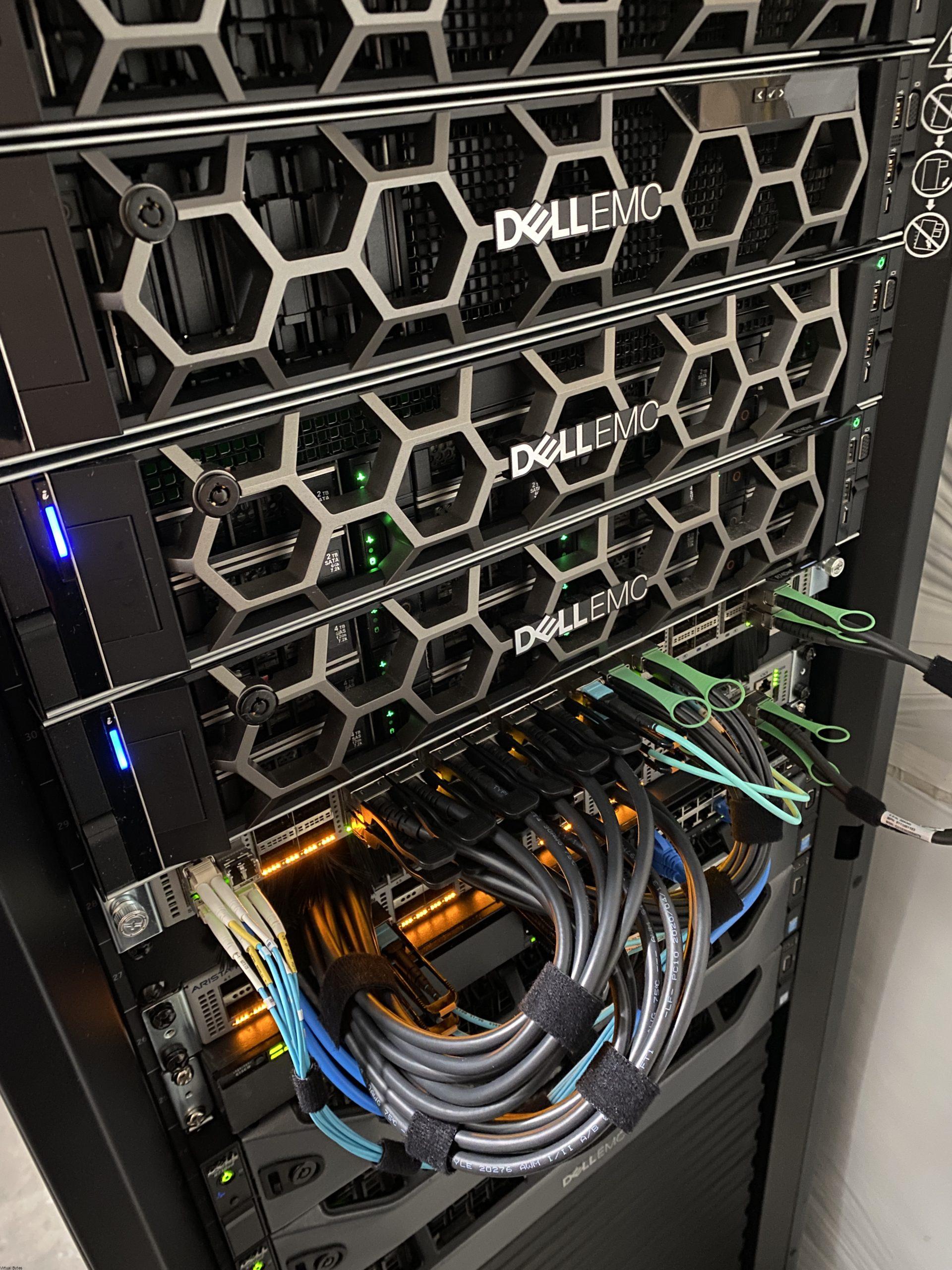

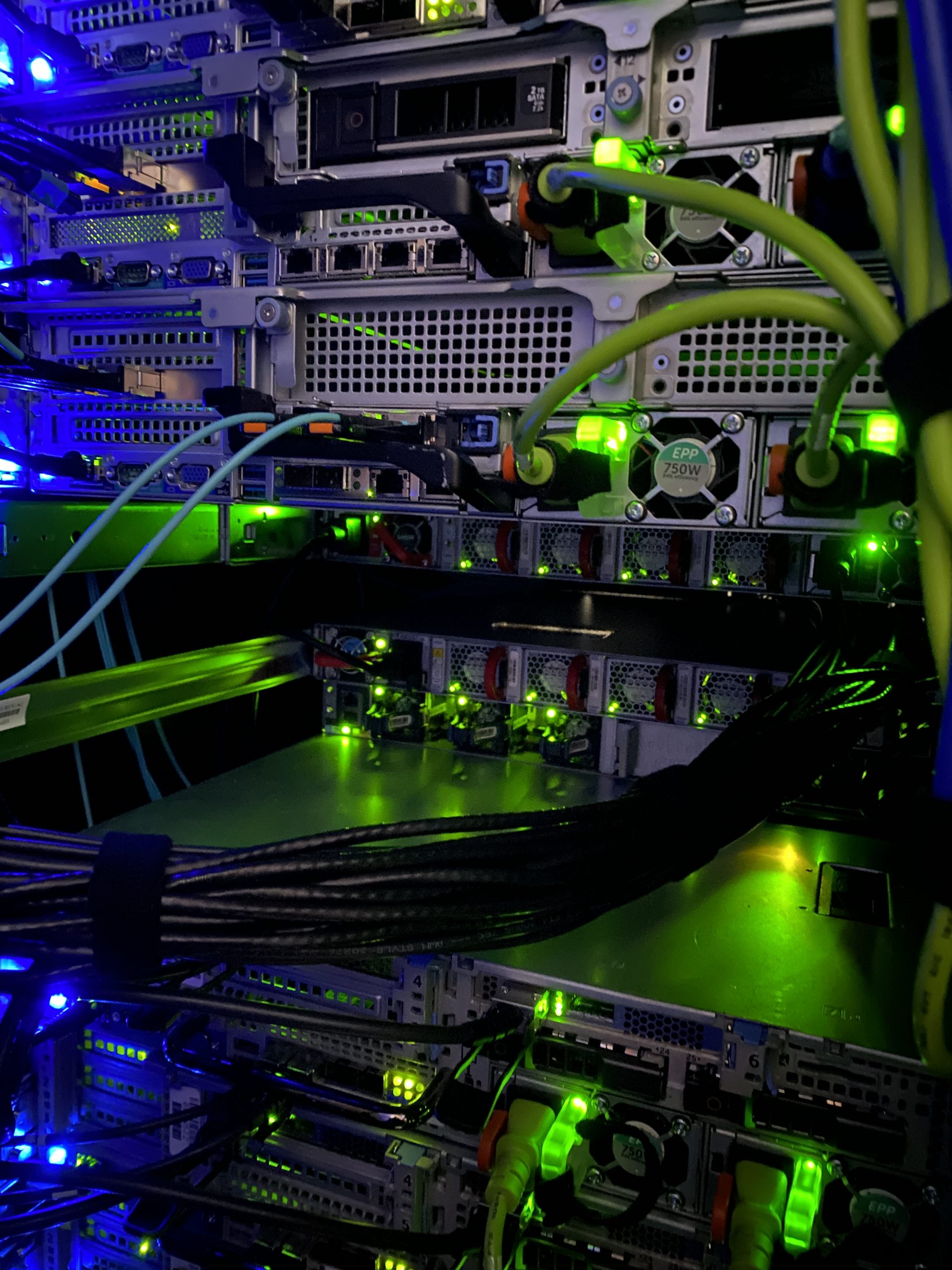

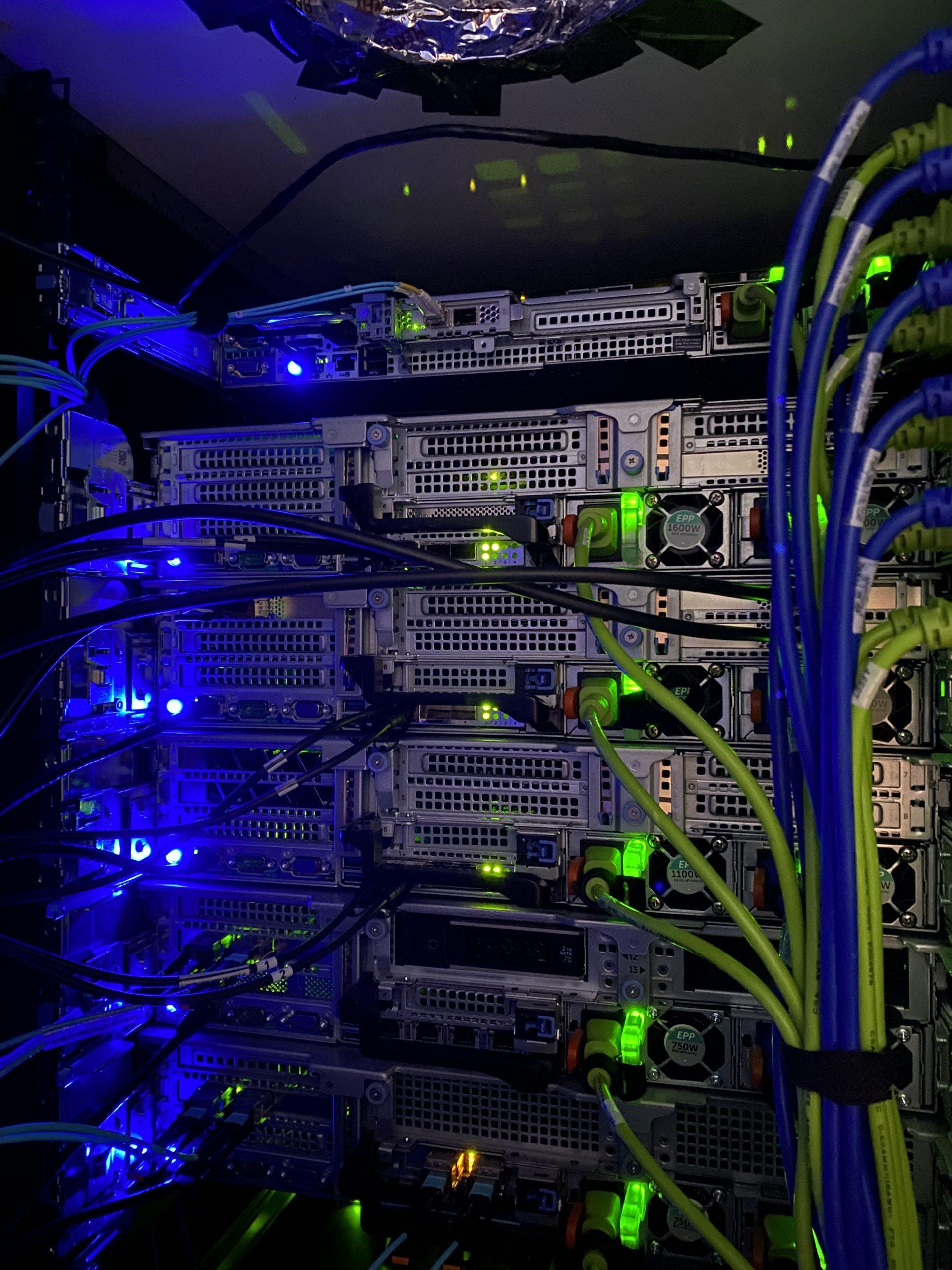

  • All-Flash vSAN Cluster (3 DellEMC PowerEdge R740s)
    • Dell PowerEdge R70XD – Production Host
    • 2 x Intel Xeon Processor Gold 6138 2.0GHZ 27.5M 512GB RAM 10TB vSAN
      • VMware vSphere 8.0
      • Dual Mellanox ConnectX-4 LX 50Gb/s (Data, vSAN)
      • Quad Intel X710 NDC SFP+ 10Gb/s
  • Dell PowerEdge R740XD – Storage Server
    • 1 x Intel Scalable Silver 4108 6 Core – 64GB RAM – 95TB Storage ( iSCSI, NFS, SMB)
      • Dual Mellanox ConnectX-3 Pro 40Gb/s (80Gb/s Backbone for NAS/SAN)
  • Dell PowerEdge R740XD – Archive Storage Server
    • Intel Scalable Bronze 6 Core – 32GB RAM – 50TB Storage ( iSCSI, NFS, SMB)
    • Dual Mellanox ConnectX-3 Pro 40Gb/s (80Gb/s Backbone for NAS/SAN)

Lab Server & Storage Infrastructure

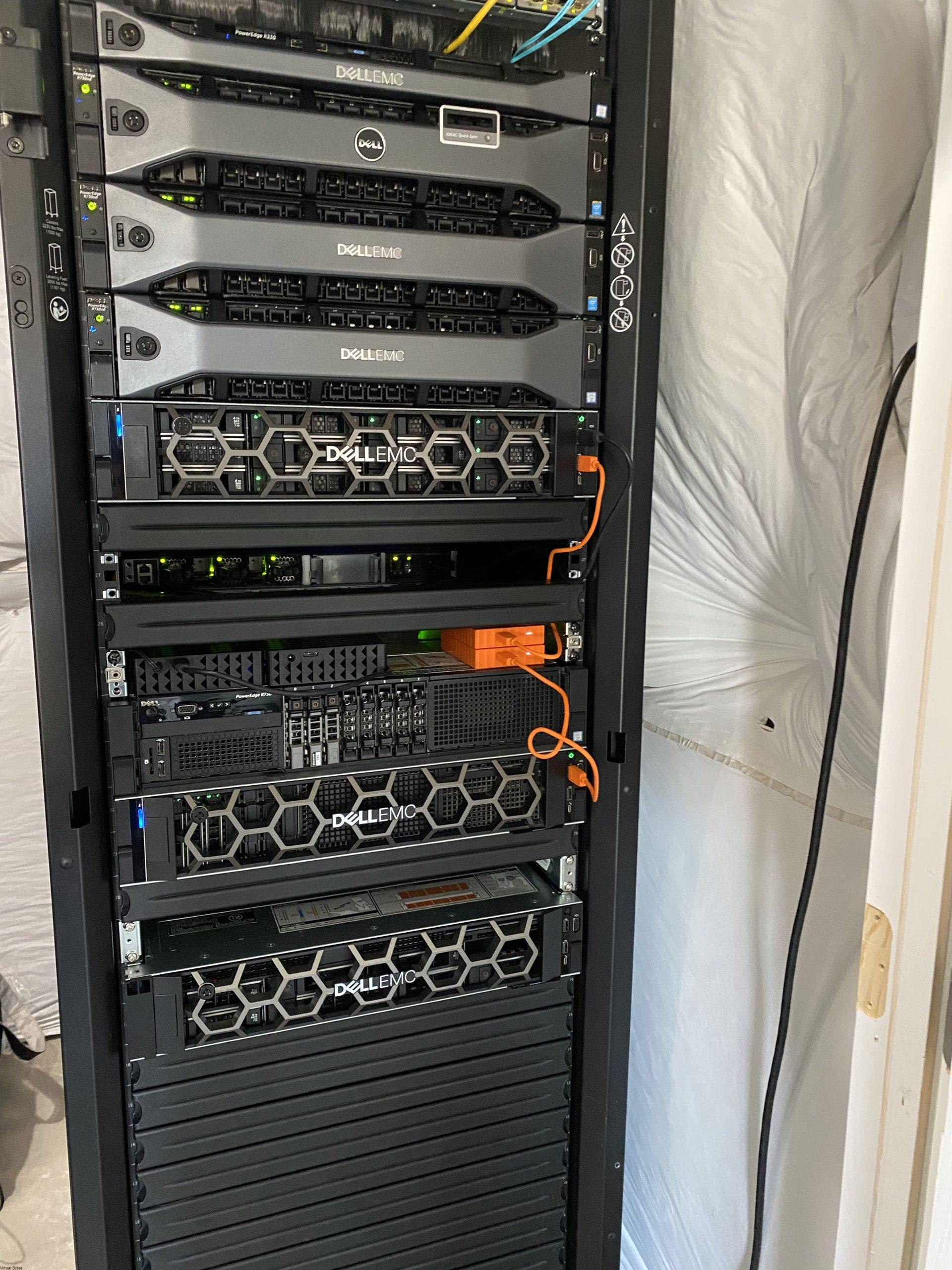

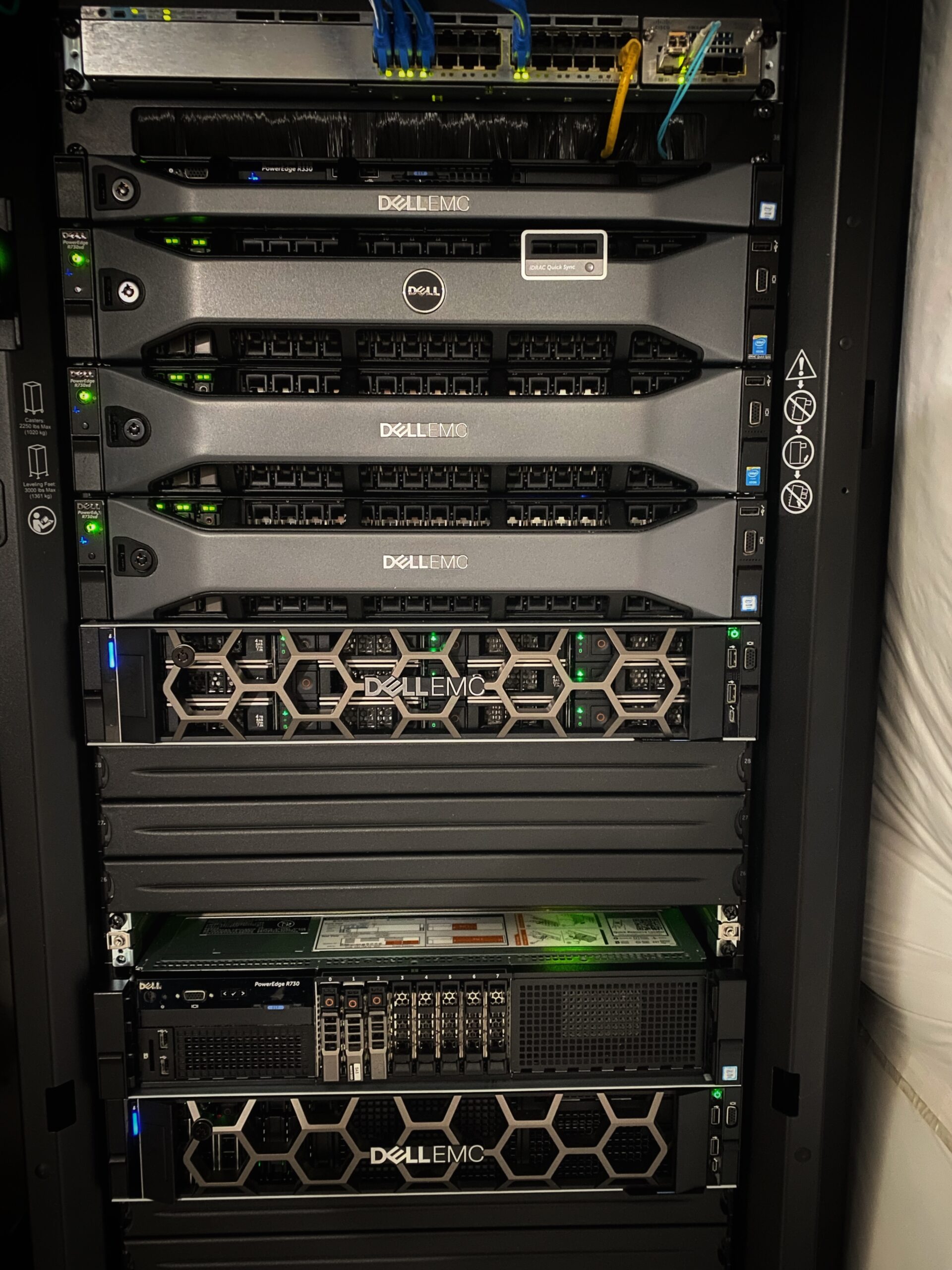

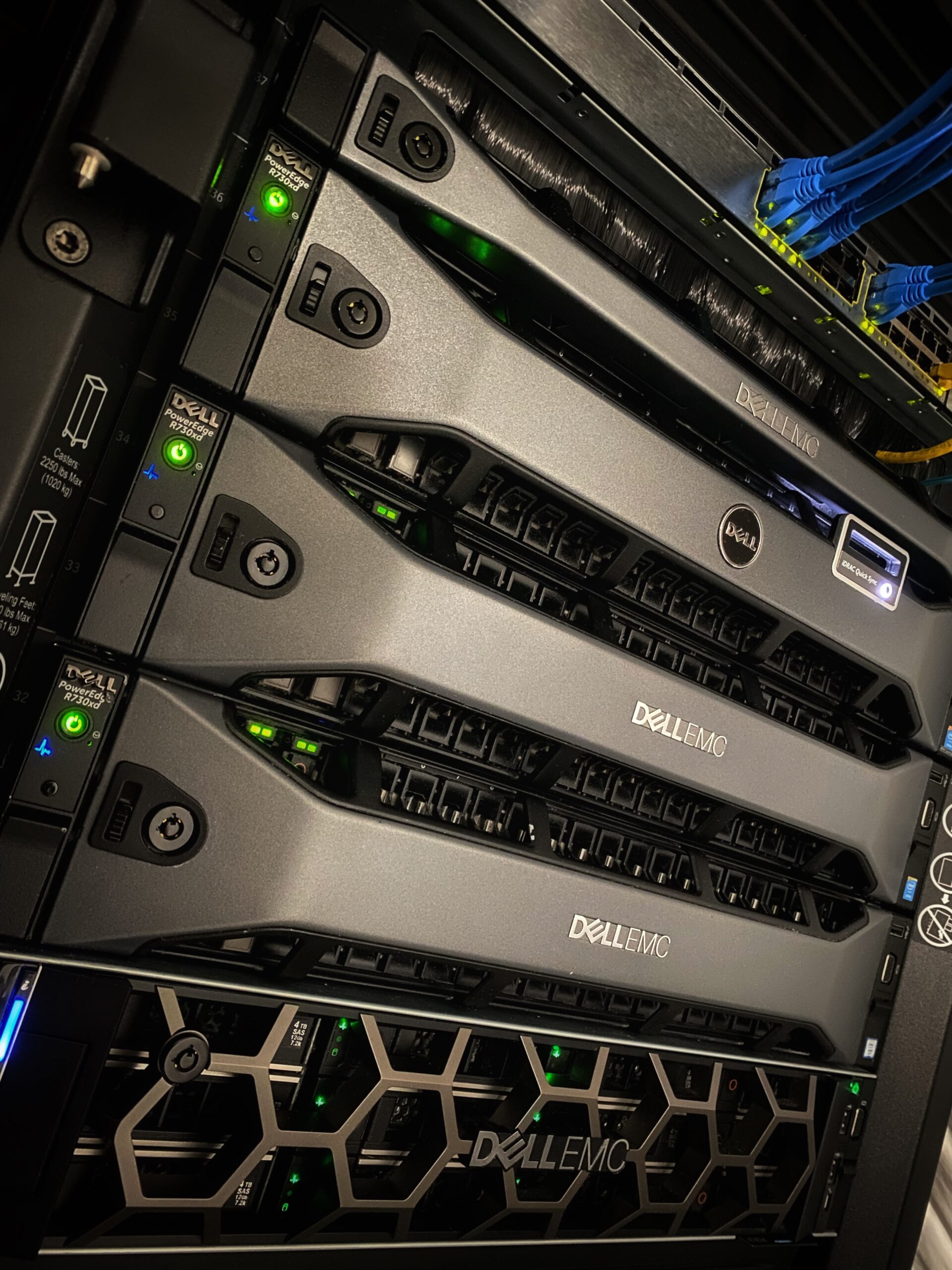

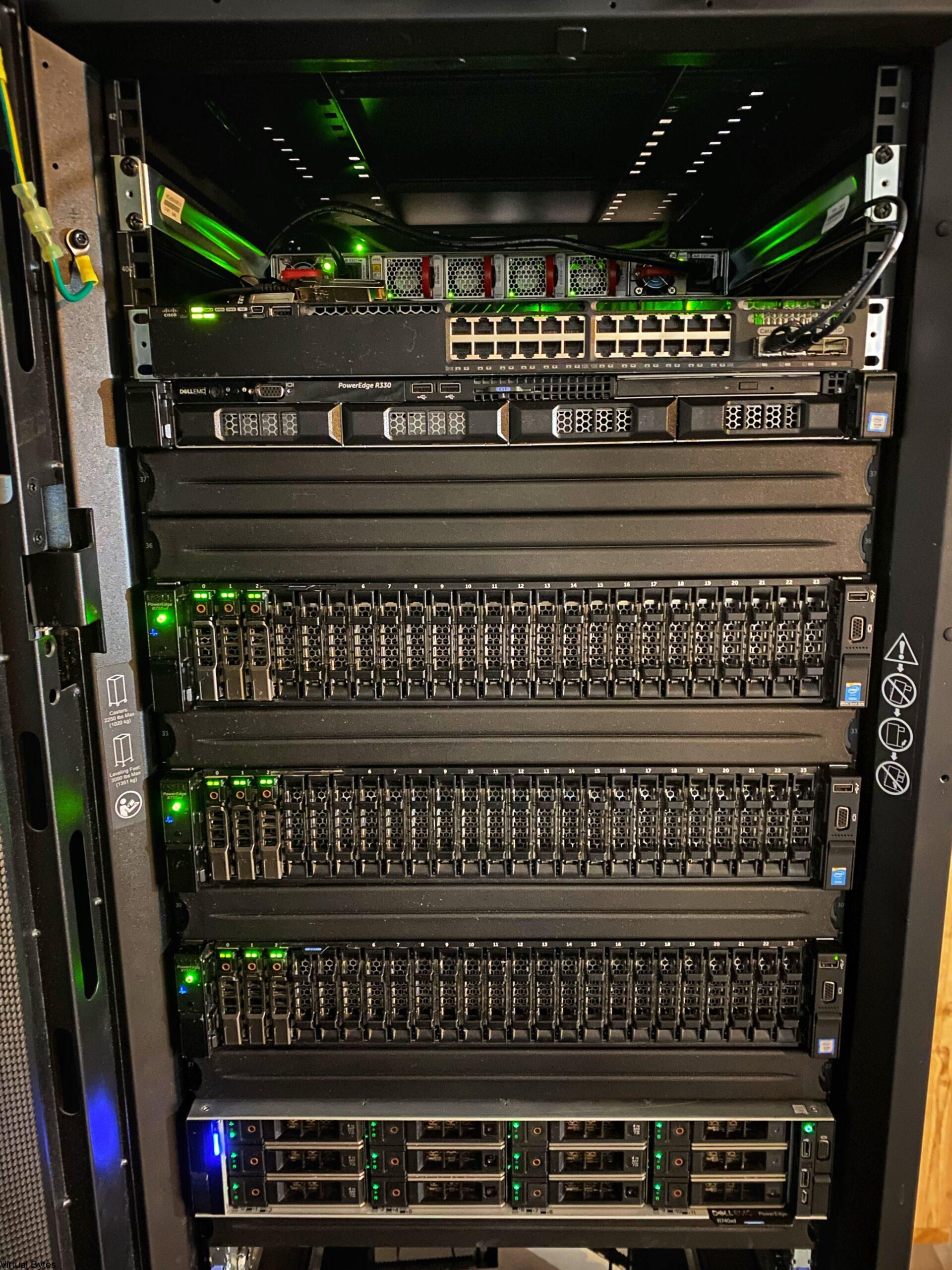

  • All-Flash vSAN Cluster (3 DellEMC PowerEdge R730XDs)

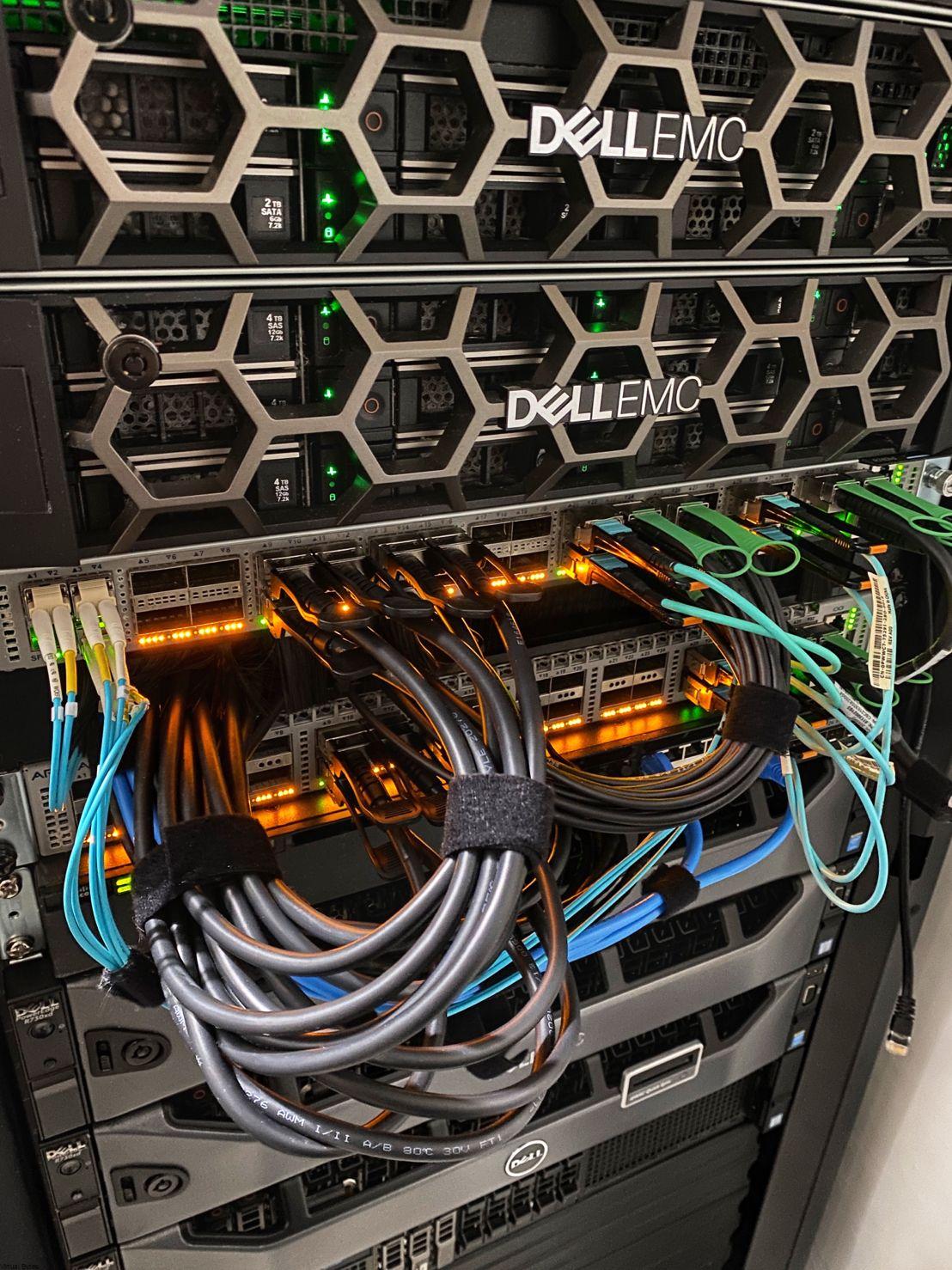

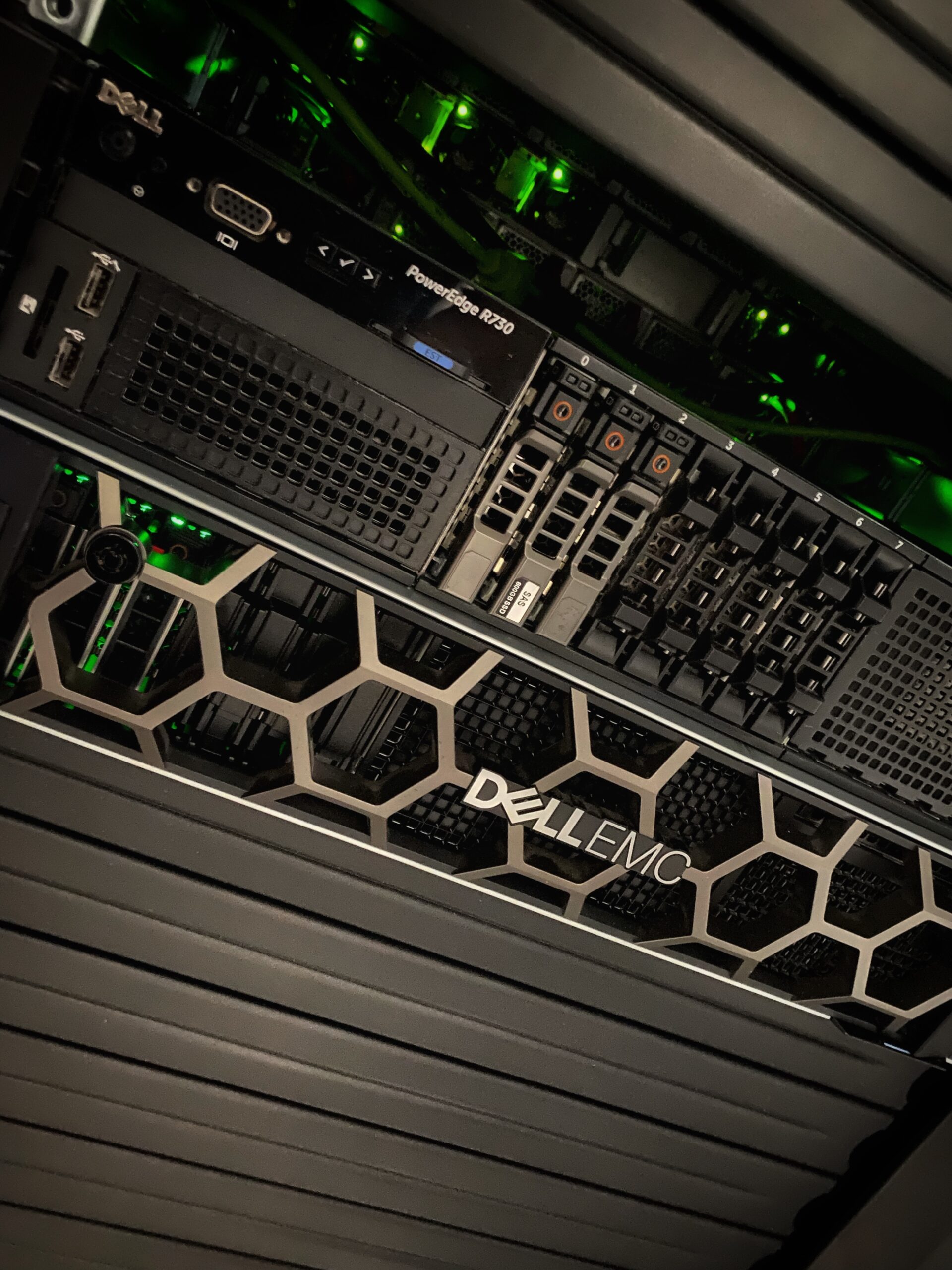

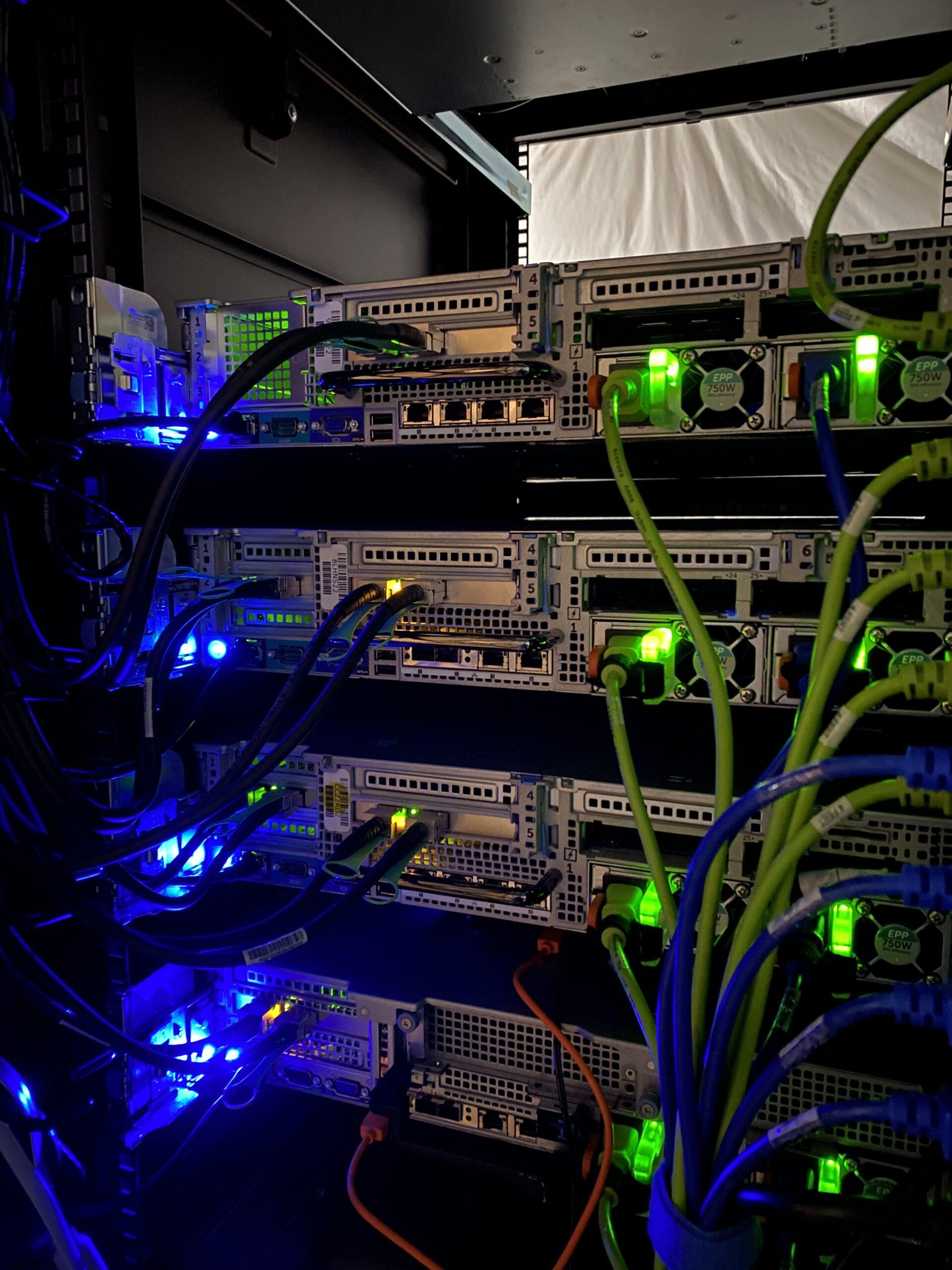

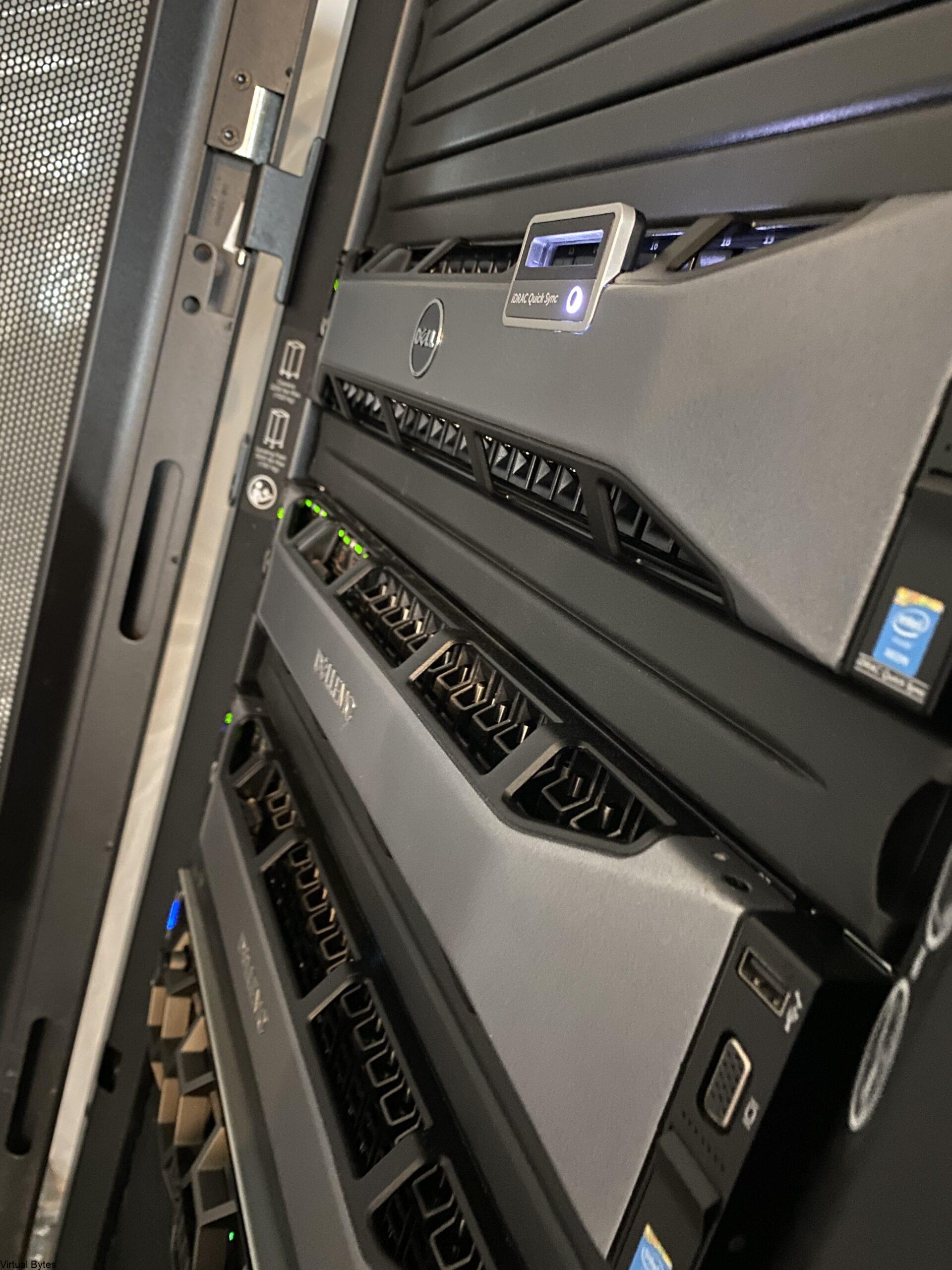

  • Dell PowerEdge R730XD – Production Host
    • 2 x Intel Xeon E5-2680 v4 @ 2.40GHz (512GB RAM) – 7TB Total vSAN Storage
      • VMware ESXi 7.0 U3
      • Quad Mellanox ConnectX-3 Pro 40Gb/s (Data, vSAN)
      • Quad Intel X710 NDC SFP+ 10Gb/s

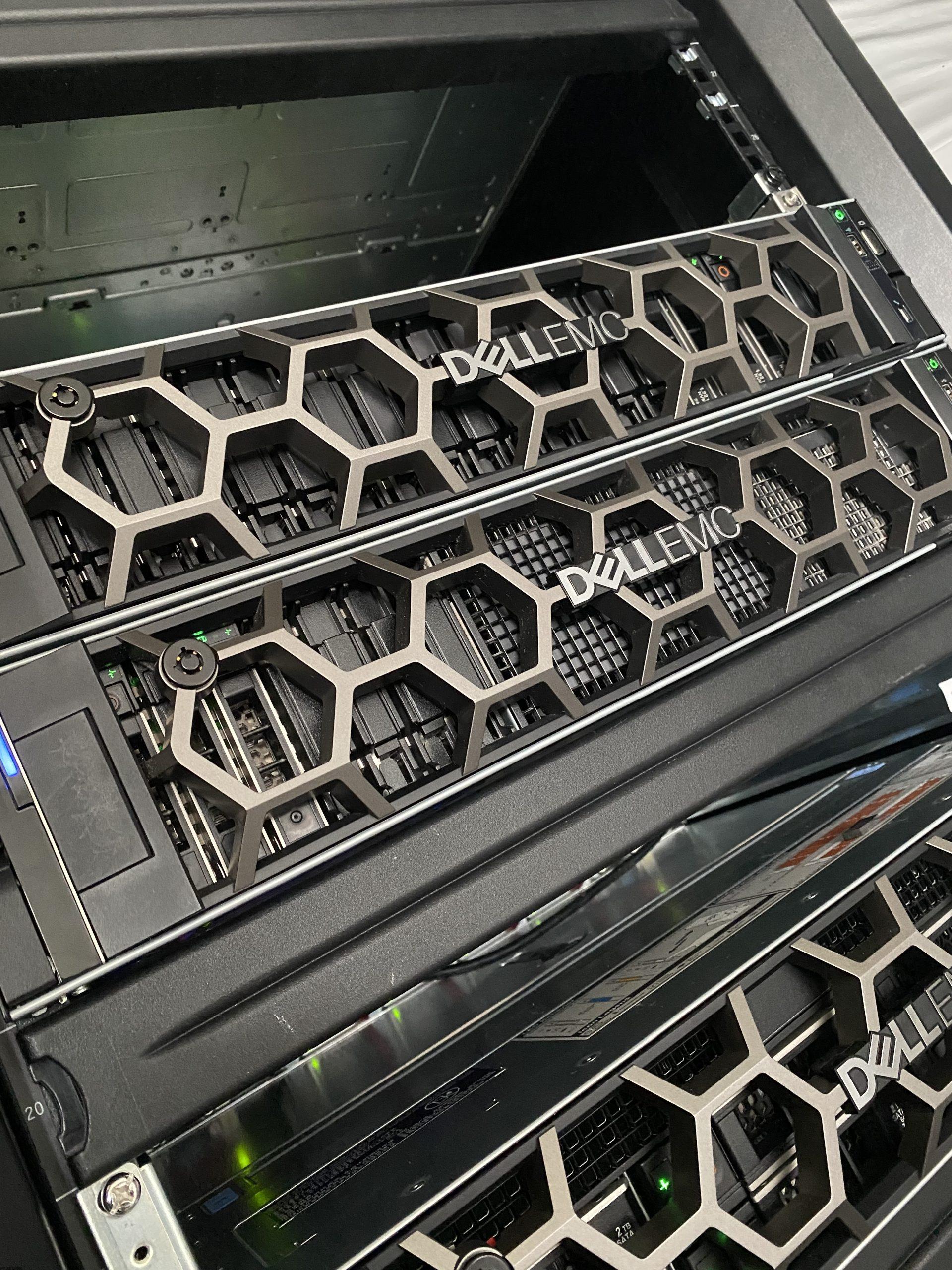

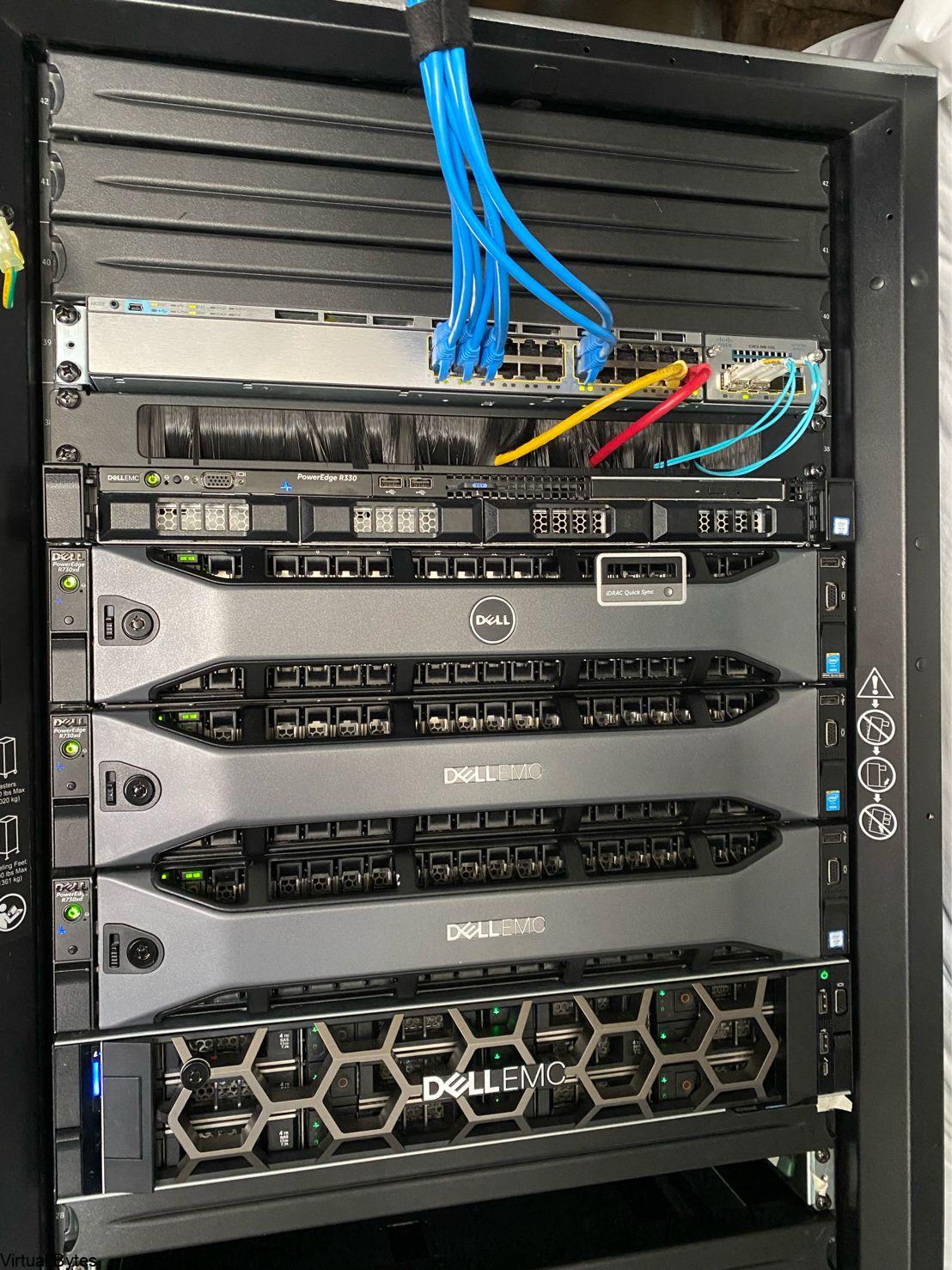

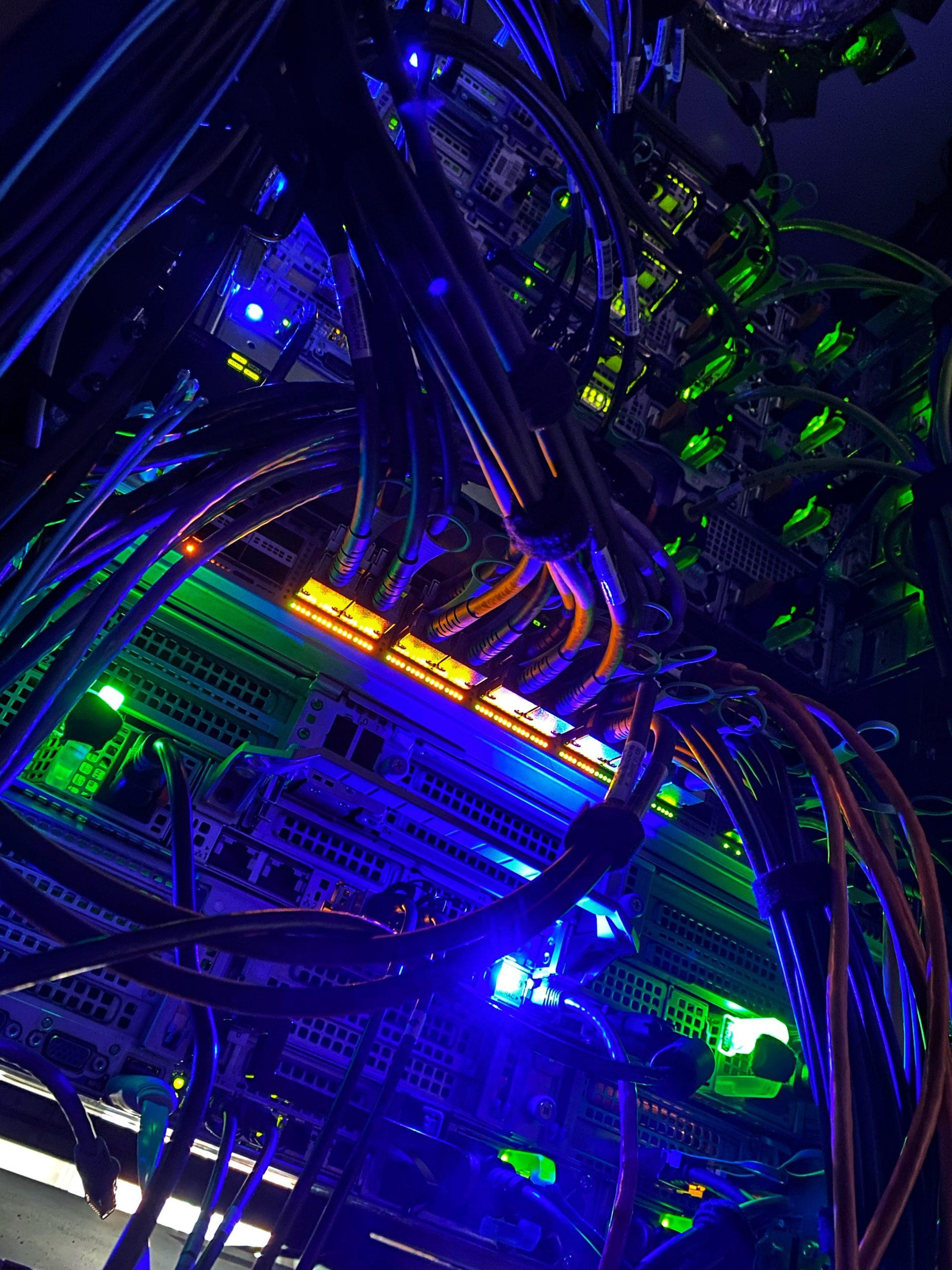

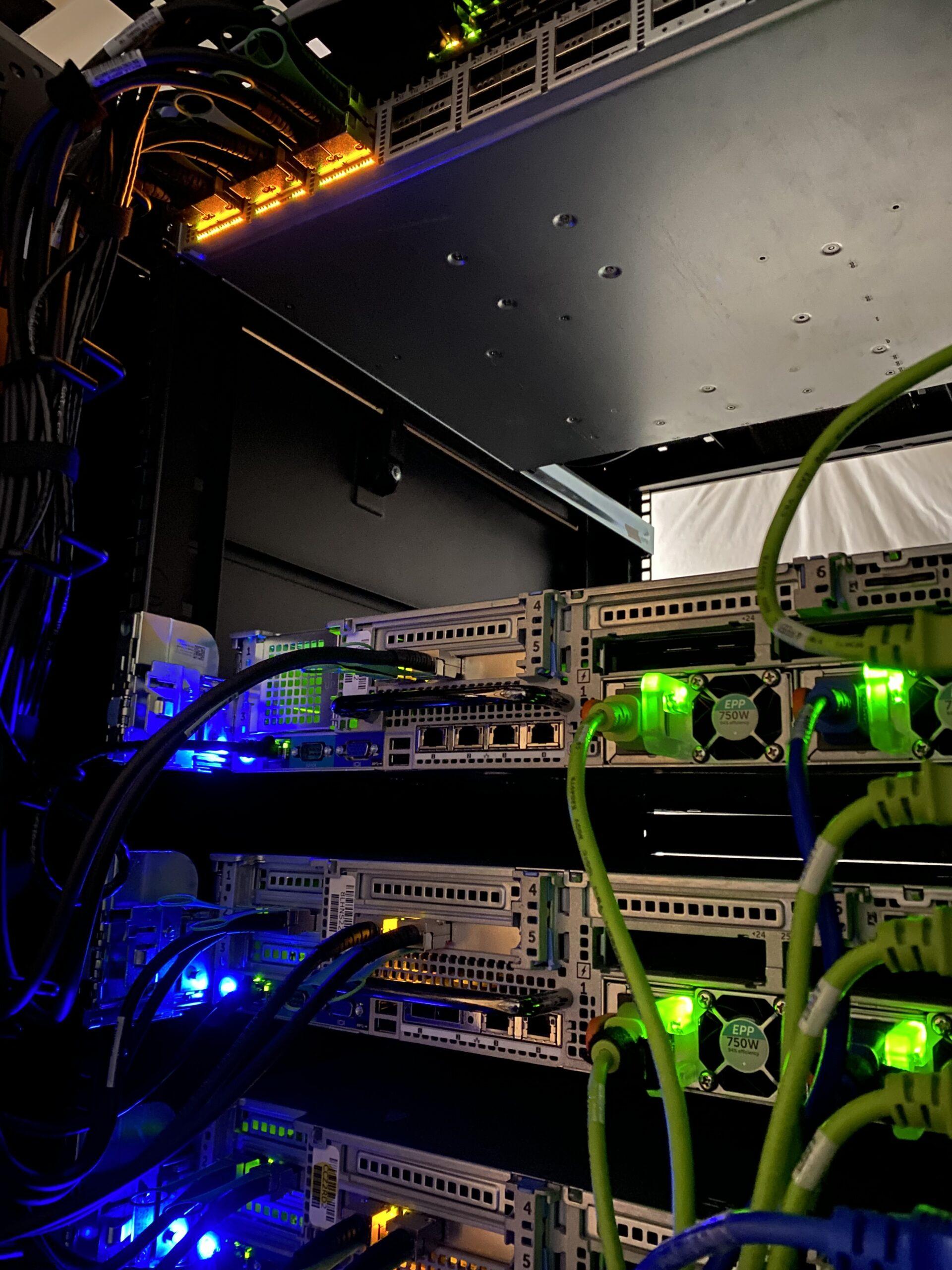

    Infrastructure

    • 1 x pfSense Firewall (Dell PowerEdge R330)
    • 1 x Arista DCS-7050QX-32-F-S 32x QSFP+ (Primary Core Switch)
    • 1 x Arista DCS-7050QX-35-F 40GbE Switch (Secondary Core Switch)

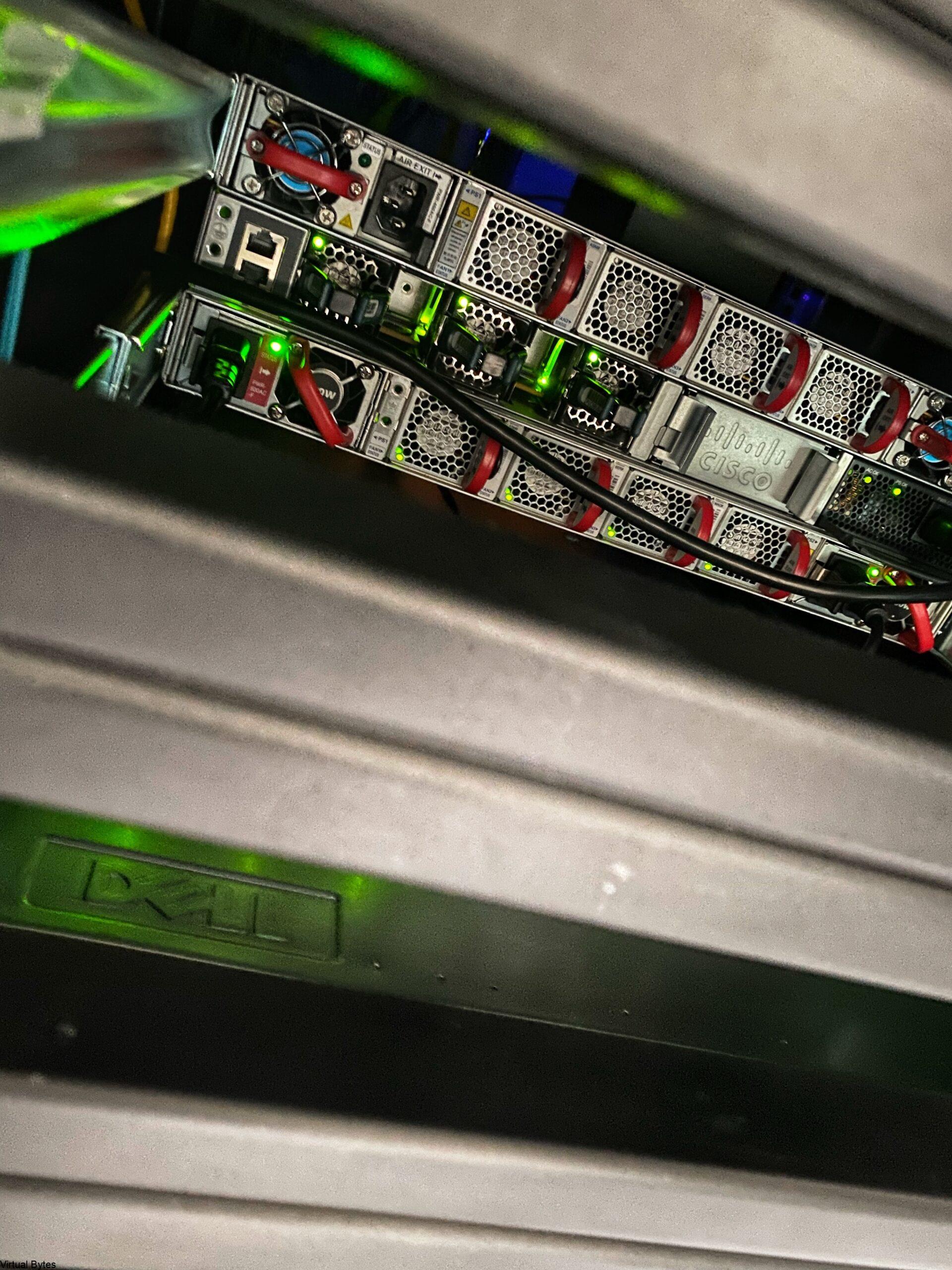

    • 1 x Cisco Catalyst C3750X PoE+
    • 1 x Cisco Catalyst C3650-24-PS PoE+

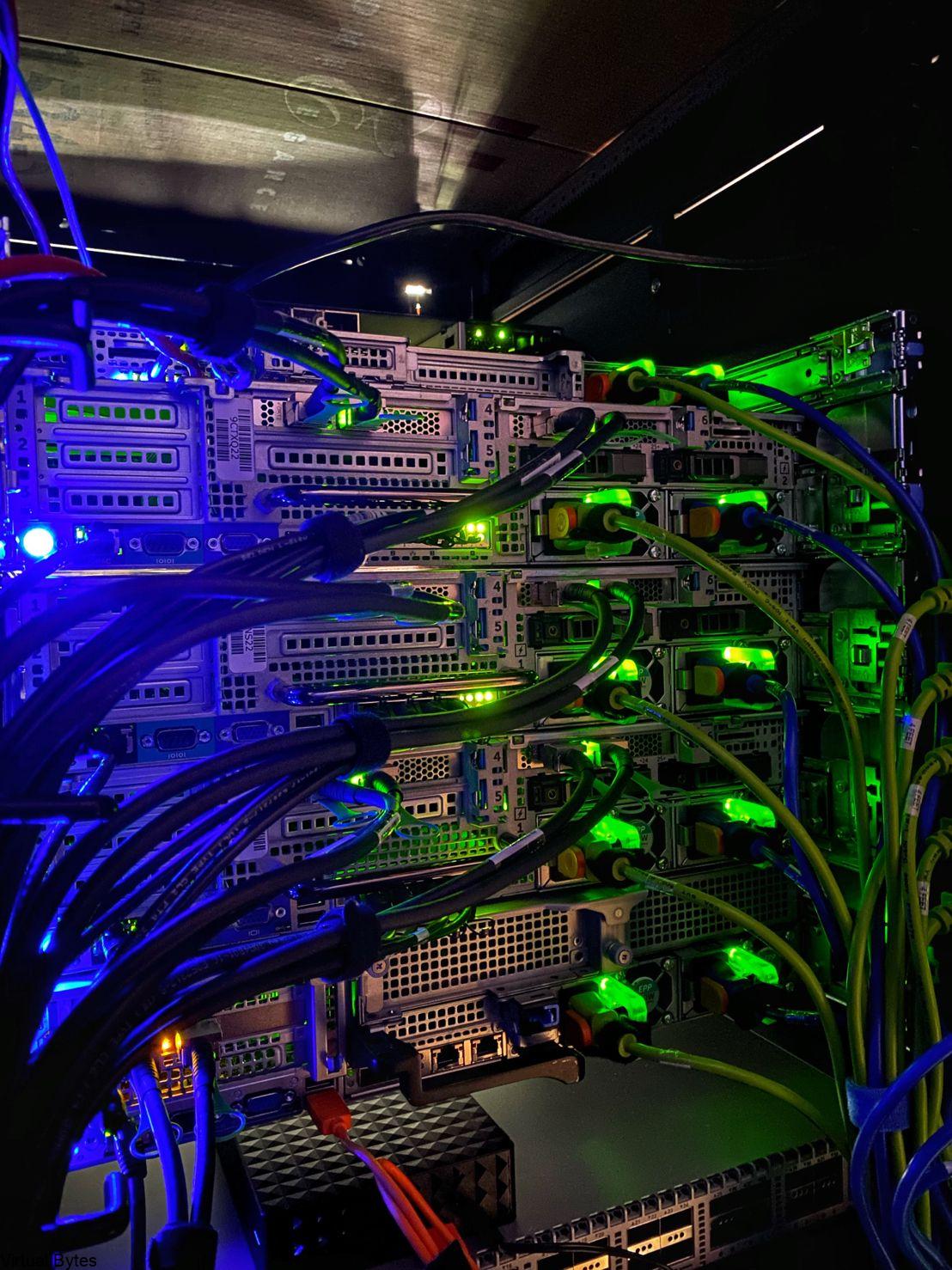

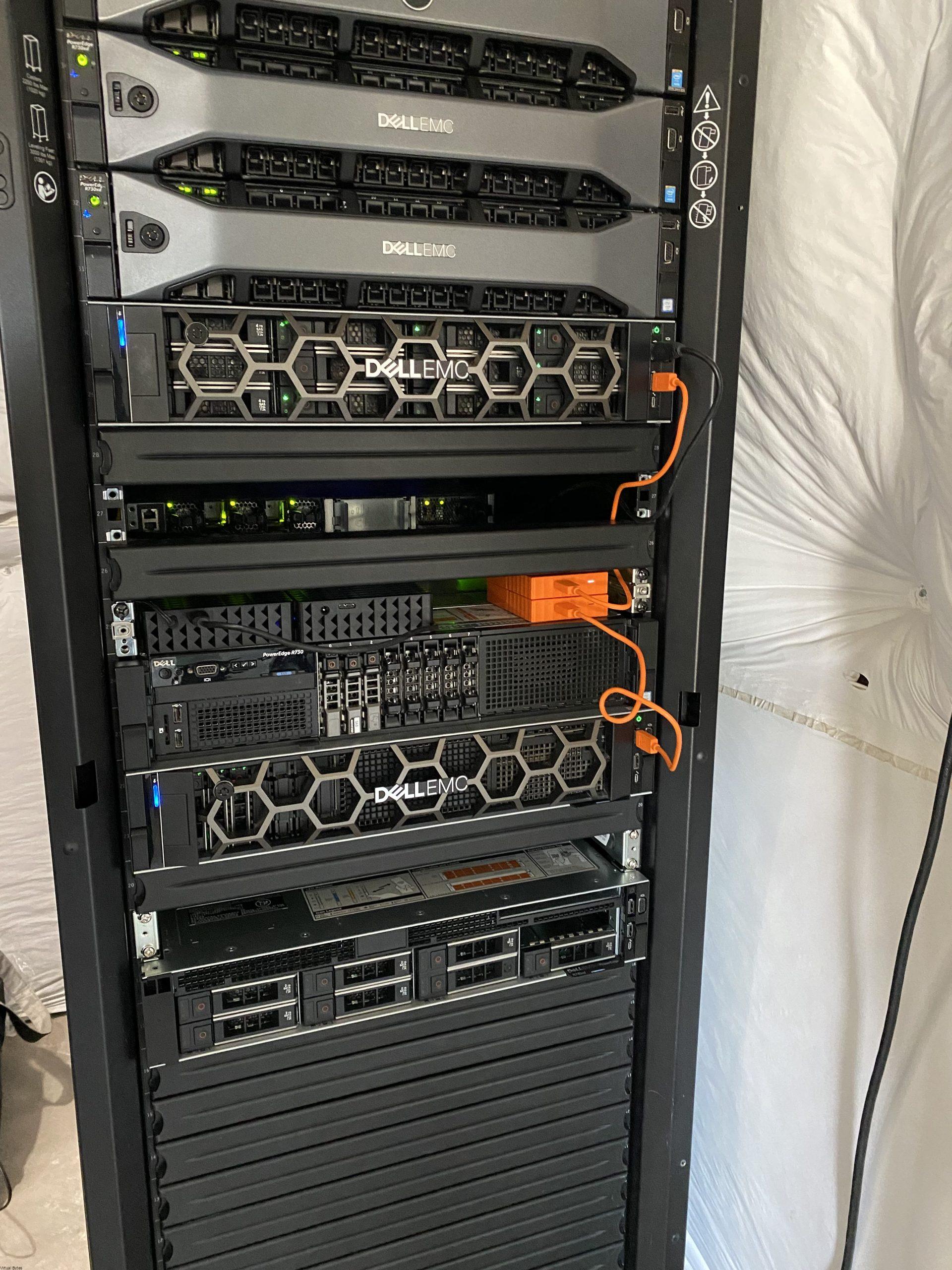

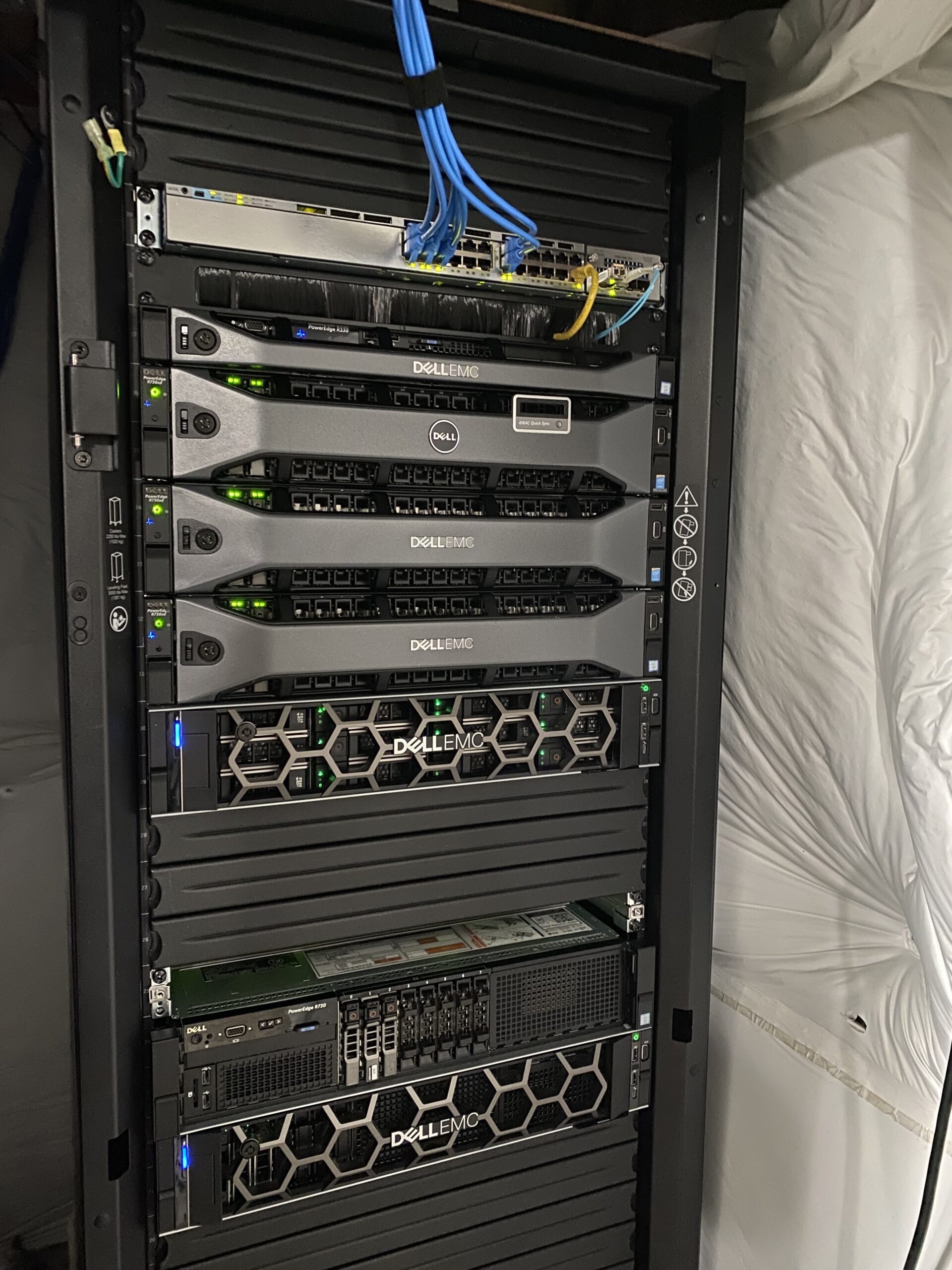

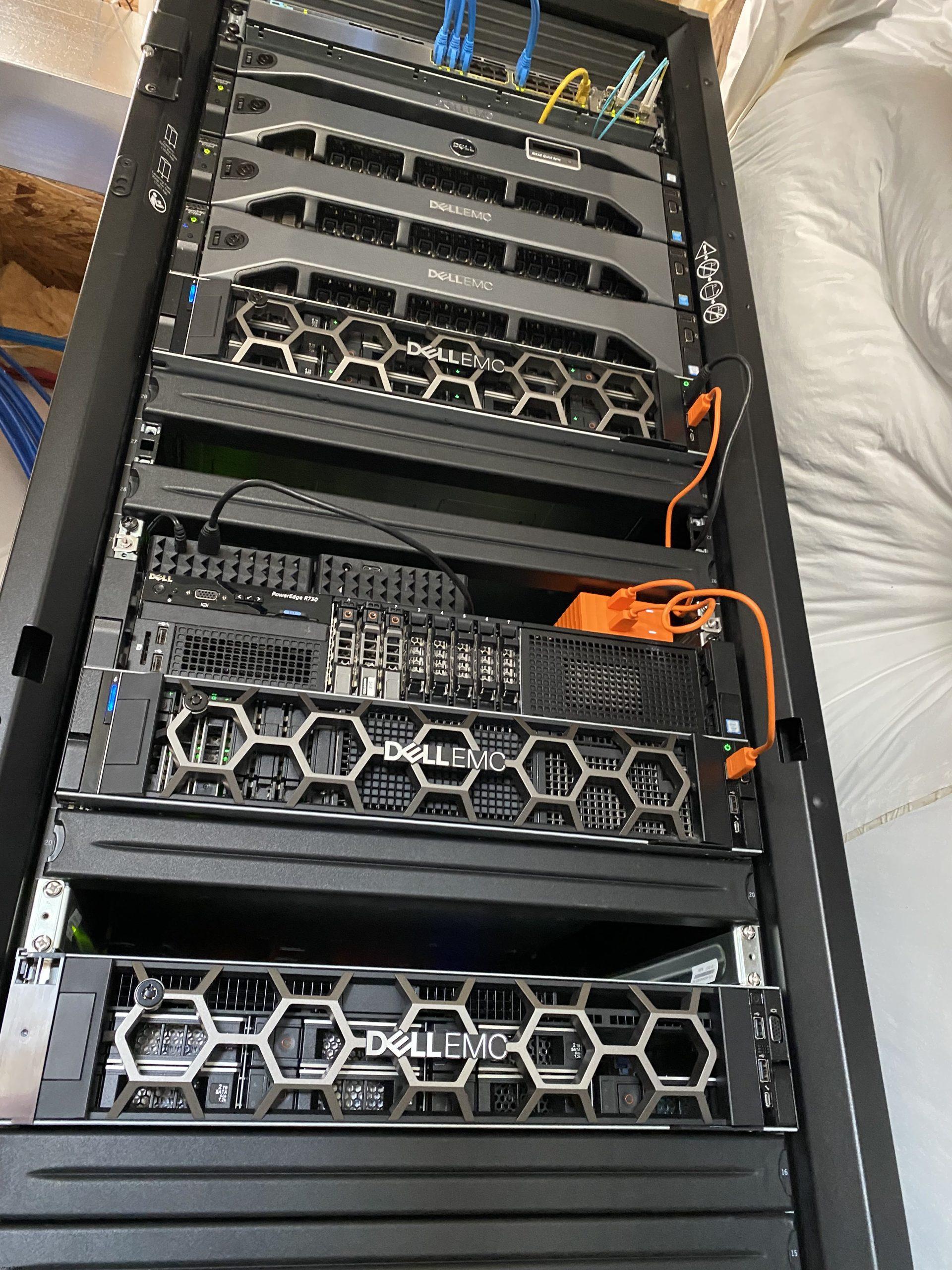

    • 1 x APC Netshelter 48U SX (Dell)

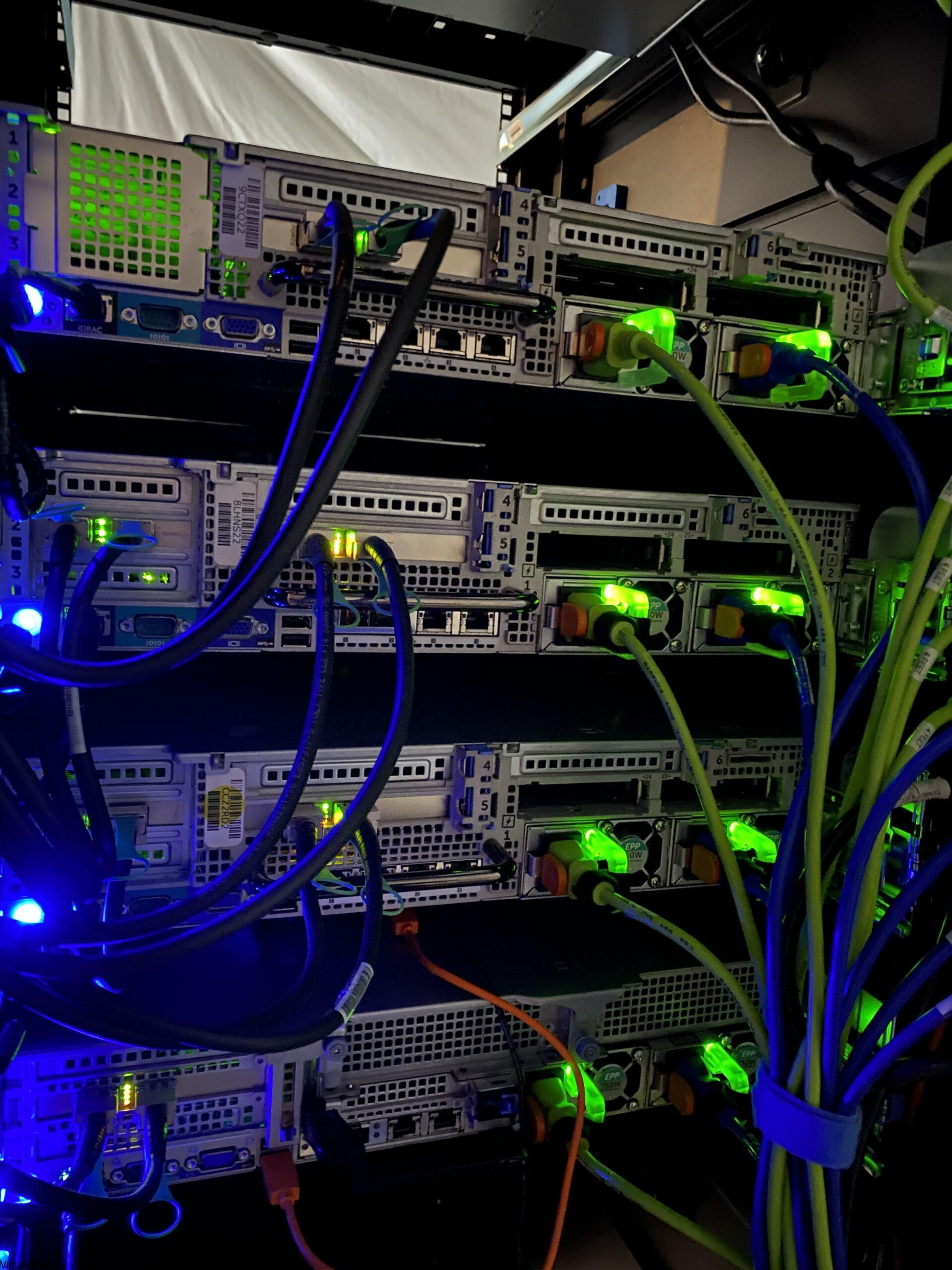

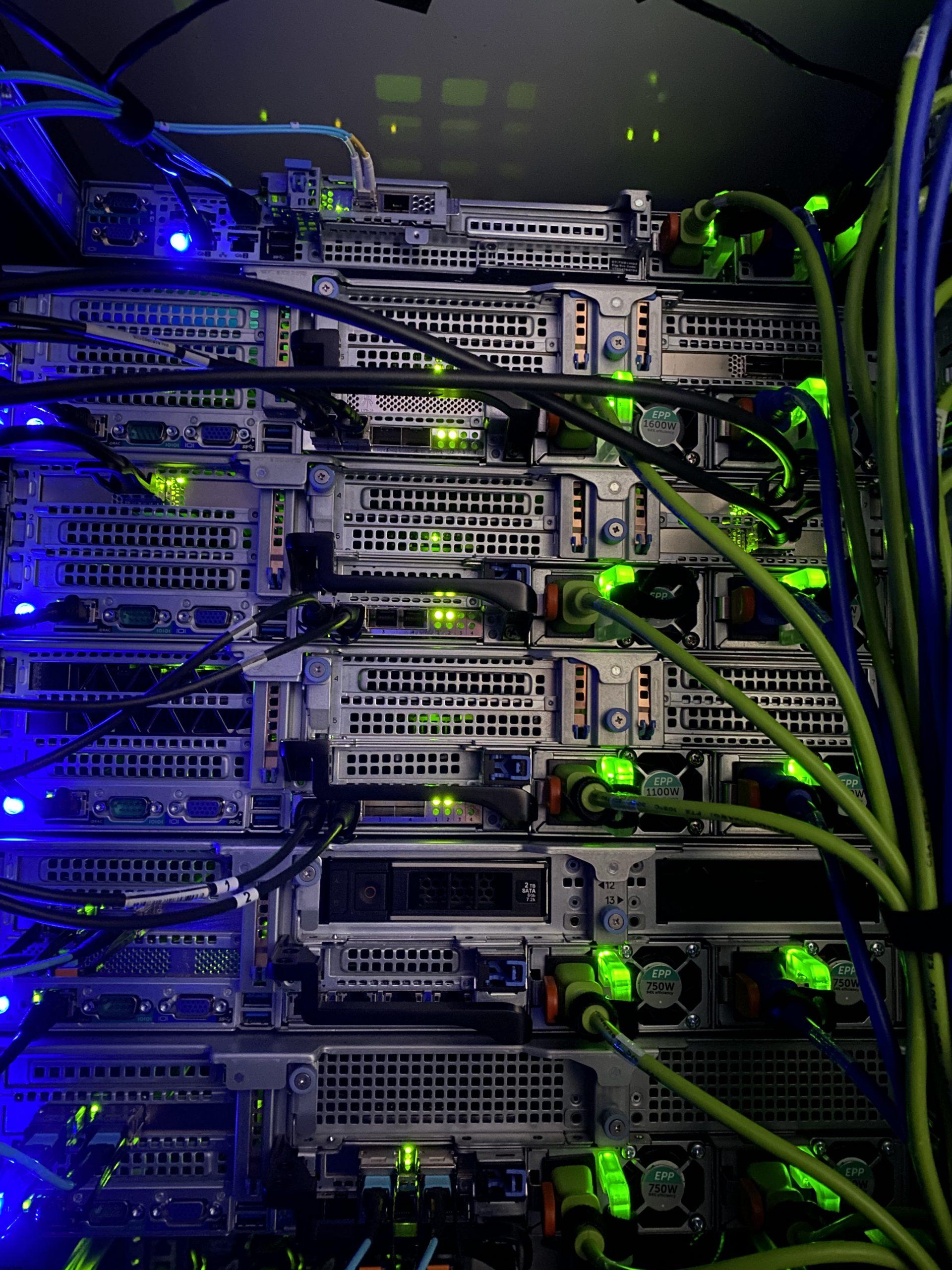

    Network Backbone Specs

    • Dynamic Routing – eBGP, Static Routing
    • Quad 40Gb/s QSFP+ Backbone for Management and vSAN
    • Quad 10Gb/s SFP+ Backbone for iSCSI Storage
    • Isolated DMZ (Demilitarized Zone) for any kind of web hosting. (This website is actually hosted in my home lab! 🙂

    Power Infrastructure

    • 2 x EATON 1500va UPS (uninterruptible power supply)
    • 2 x APC 7830 20VA 120V PDU ( power distribution units)
    • 2 x 20AMP Circuits A/B topology

    Cooling Infrastructure

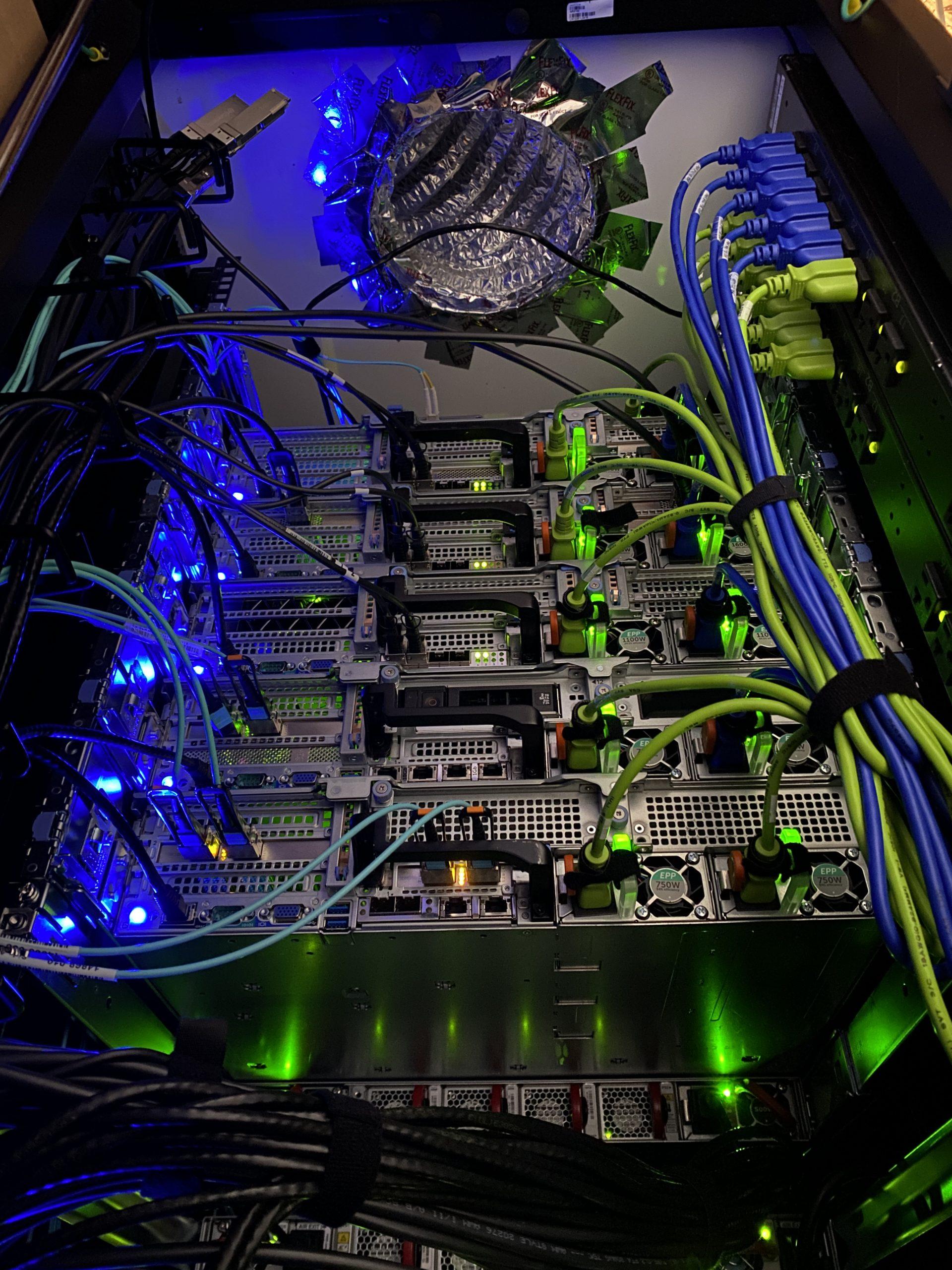

    • 1 x AC Infinity Cloudline Inline Duct Fan 8″ ( Heat is repurposed and exhausted to other areas of home)
    • 1 x AC Infinity Cloudline Inline Duct Fan 6″ (Cool air is brought in with 6″ AC Infinity)
